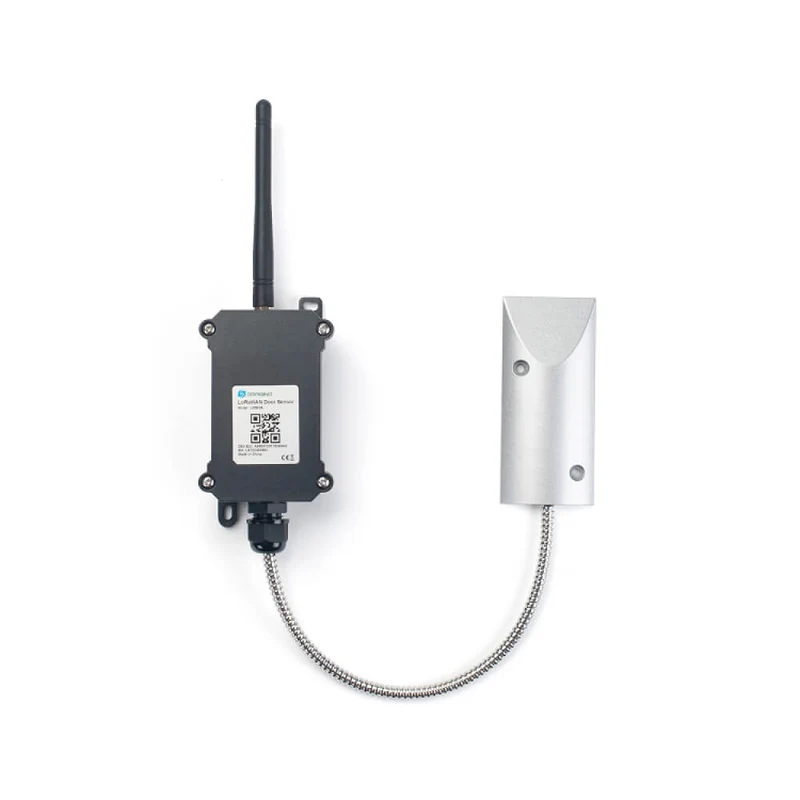

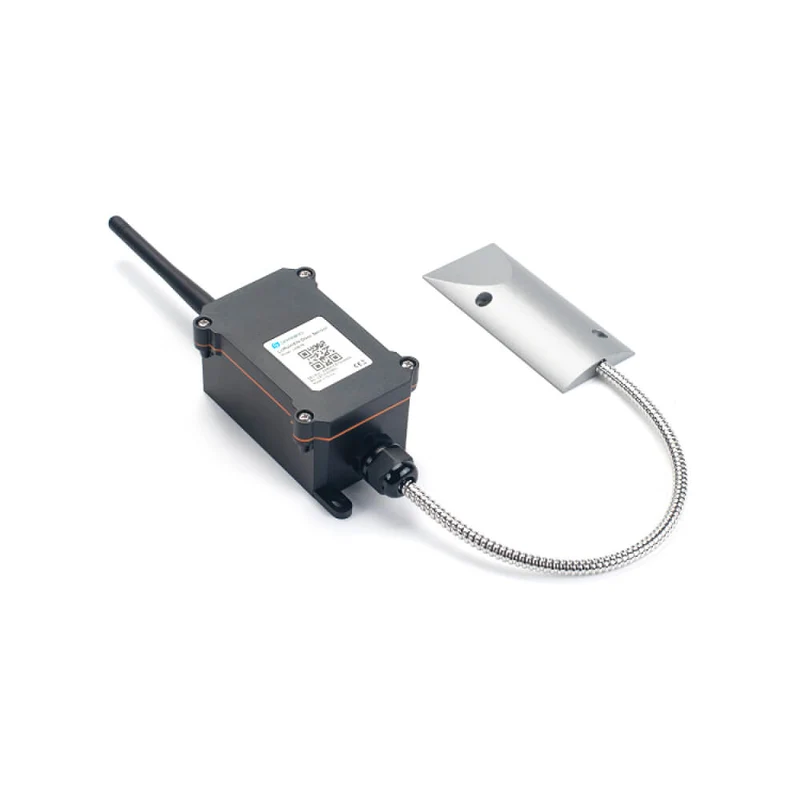

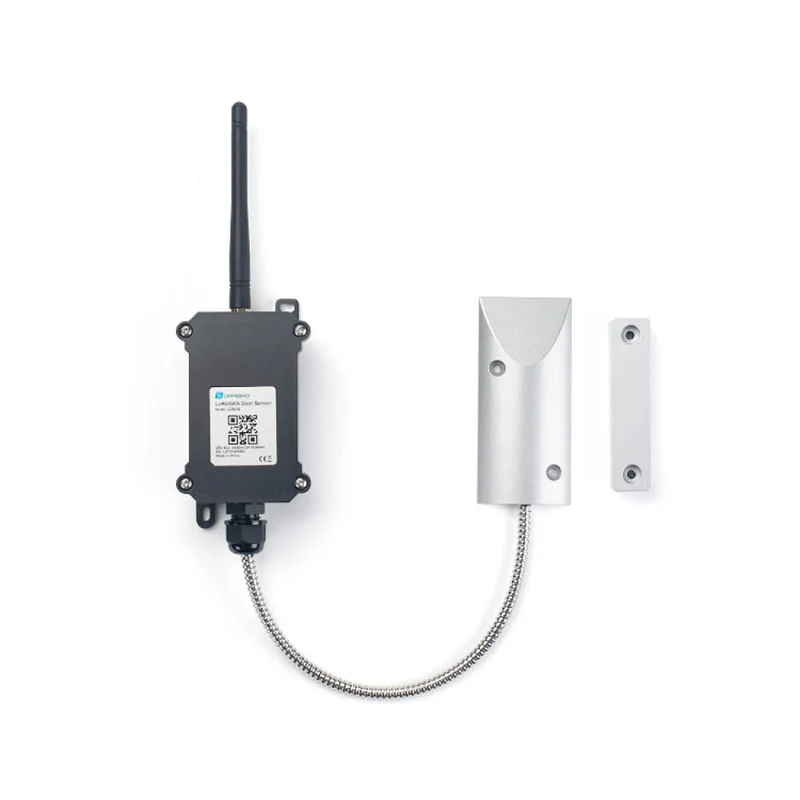

Dragino LDS03A | Outdoor LoRaWAN Door Open/Close Sensor

The Dragino LDS03A is a high-performance LoRaWAN® door sensor specifically engineered for outdoor and demanding industrial environments. Unlike standard indoor sensors, the LDS03A provides comprehensive entry-point analytics, including real-time open/close status, total event counts, and exact durations. Powered by a high-capacity 8500mAh battery, it ensures long-term, maintenance-free security for warehouse gates, villas, and remote facility enclosures.

Core Capabilities

Detailed Statistics Calculates total door open times and tracks the duration of the most recent open event. Decade-Scale Power Equipped with an 8500mAh Li-SOCI2 battery designed to last up to 10 years. Timeout Protection Automated "Open Alarm" triggers if a door is left ajar for a user-defined threshold. Offline Datalogging Internal datalog records up to 3000 events to ensure data continuity during network outages.

Industrial Applications

• Logistics & Warehousing: Track heavy-duty gate cycles and receive alerts if shipping docks are left unsecured. • Facility Management: Monitor restricted access areas in smart buildings and large campuses remotely. • Retail Security: Enhance supermarket and store security by tracking entry counts and unauthorized after-hours access.

Technical Integration

The LDS03A is LoRaWAN v1.0.3 Class A compliant and comes pre-loaded with unique registration keys for zero-touch provisioning. It supports remote configuration via LoRaWAN downlinks or local AT commands. Fully compatible with mainstream network servers including The Things Stack, ChirpStack, and AWS IoT Core. For large-scale deployment architecture or system integration support, contact the ShopIoT technical team.
