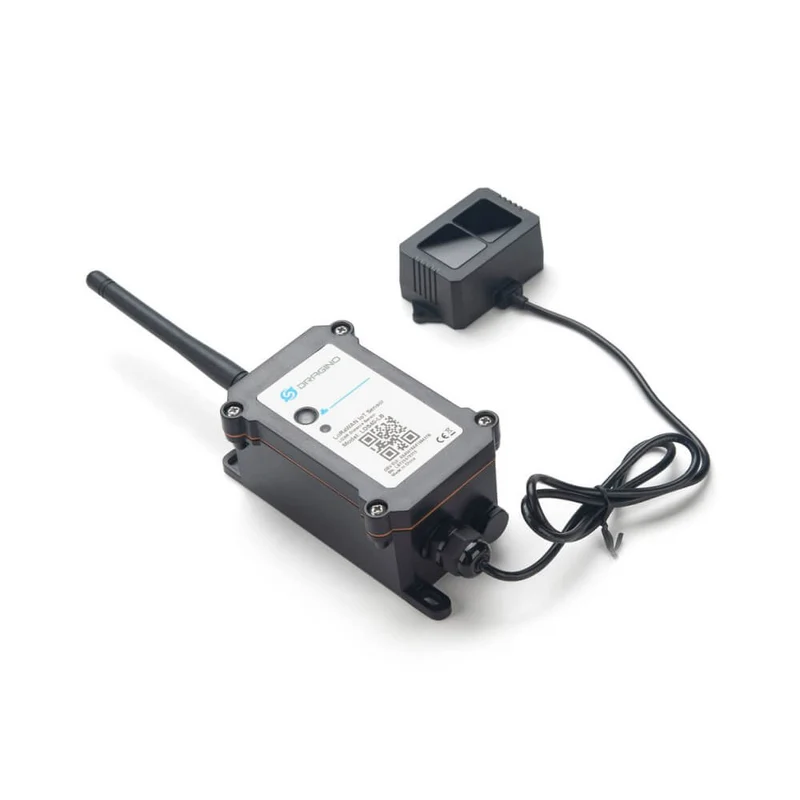

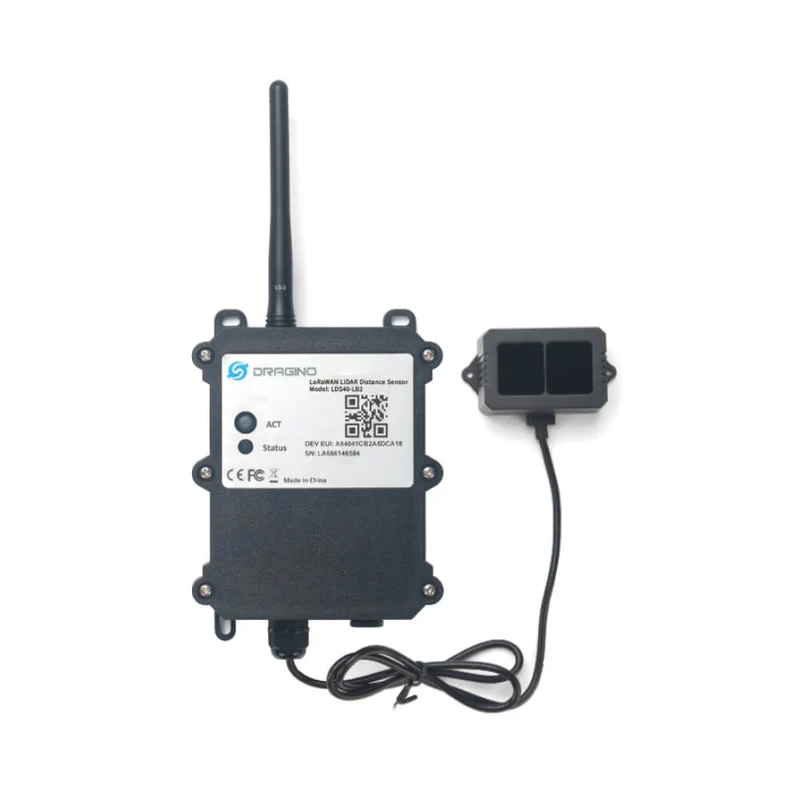

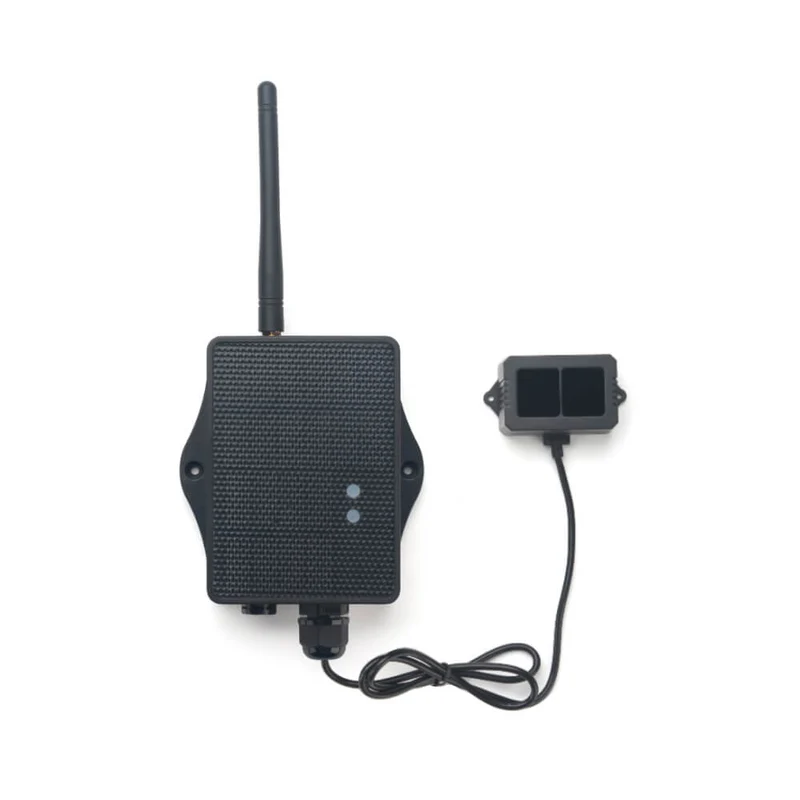

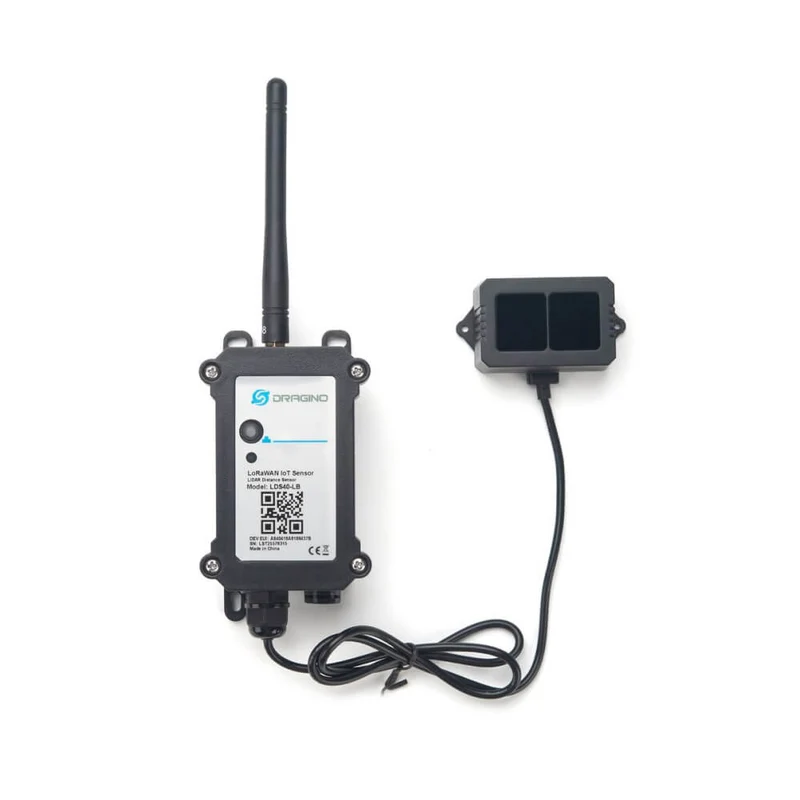

Dragino LDS40 Series | LoRaWAN LiDAR TOF Distance Sensor

The Dragino LDS40 is a professional LoRaWAN LiDAR TOF Distance Sensor engineered for high-precision spatial analytics and industrial monitoring. Utilizing Time-of-Flight (TOF) laser technology, the LDS40 measures the time it takes for a laser pulse to reflect off a target, providing highly accurate distance data across a vast range from 0 to 40 meters. This technology is significantly more robust than traditional ultrasonic sensors, as it is less affected by ambient noise or temperature fluctuations. Encased in a weatherproof housing, the LDS40 is the ultimate solution for monitoring silos, large water tanks, and industrial inventory levels wirelessly.

Precision Spatial Intelligence

TOF Laser Induction Employs advanced light detection and ranging to ensure stable measurements even in low-visibility or complex industrial environments. Intelligent Datalogging Features a built-in datalogger to store distance events when LoRaWAN coverage is lost, synchronizing data automatically upon reconnection.

Professional Monitoring Scenarios

• Liquid & Solid Level: Monitor water tank levels or granary overflow in deep silos up to 40m high. • Smart City: Intelligent trash can management and parking proximity detection. • Industrial Automation: Robot obstacle avoidance and automatic control for warehouse machinery.

Dragino Power Options

• Model LB: 8500mAh Non-rechargeable battery for multi-year remote operation. • Model LB2: High-capacity 19000mAh battery for maximum deployment life. • Model LS: 3000mAh Solar-powered rechargeable battery for sustainable use.

What is in the Box?

• 1 x Dragino LDS40 Sensor Node • 1 x LiDAR TOF Distance Probe • 1 x Wall/Pole Mounting Kit • 1 x Quick Start Guide

Product Certifications

CE FCC RoHS
