Dragino LHT65N-PIR | LoRaWAN Temperature, Humidity & PIR Motion Sensor

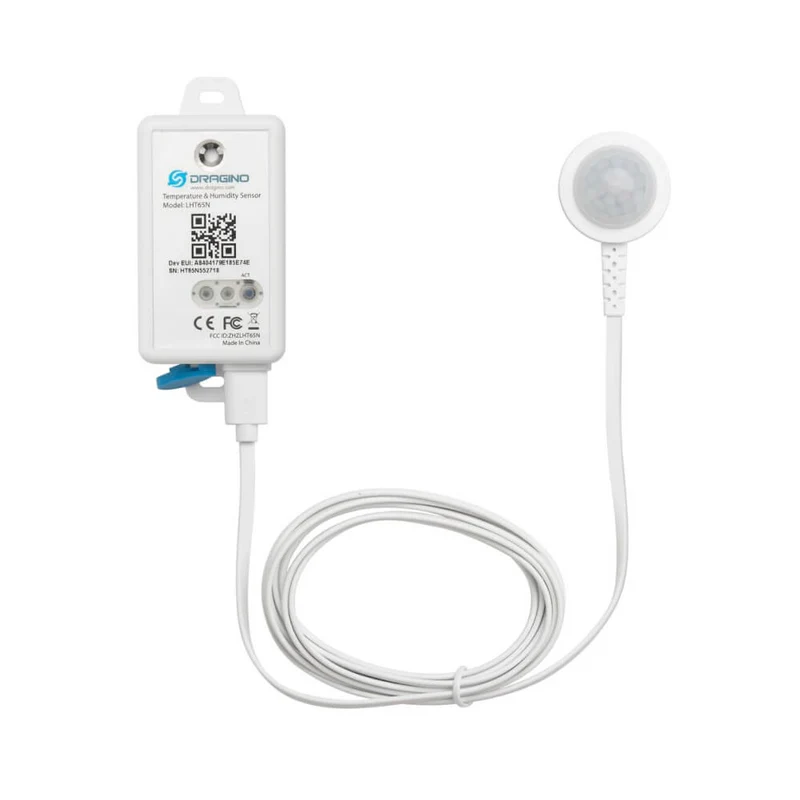

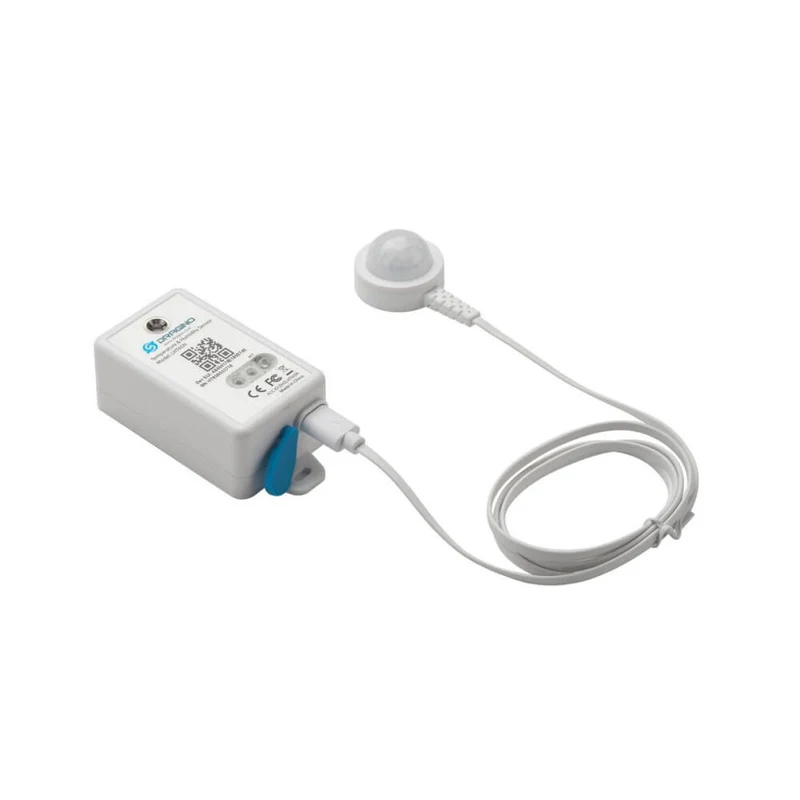

The Dragino LHT65N-PIR is a versatile LoRaWAN® end-node designed for comprehensive indoor monitoring. It features a high-stability internal sensor for ambient temperature and humidity, supplemented by an external PIR (Passive Infrared) probe. This combination allows for a single device to manage both climate comfort and occupancy intelligence. Utilizing advanced spread spectrum technology, the LHT65N-PIR achieves extreme wireless range and high interference immunity while maintaining ultra-low power consumption.

Smart Environmental Intelligence

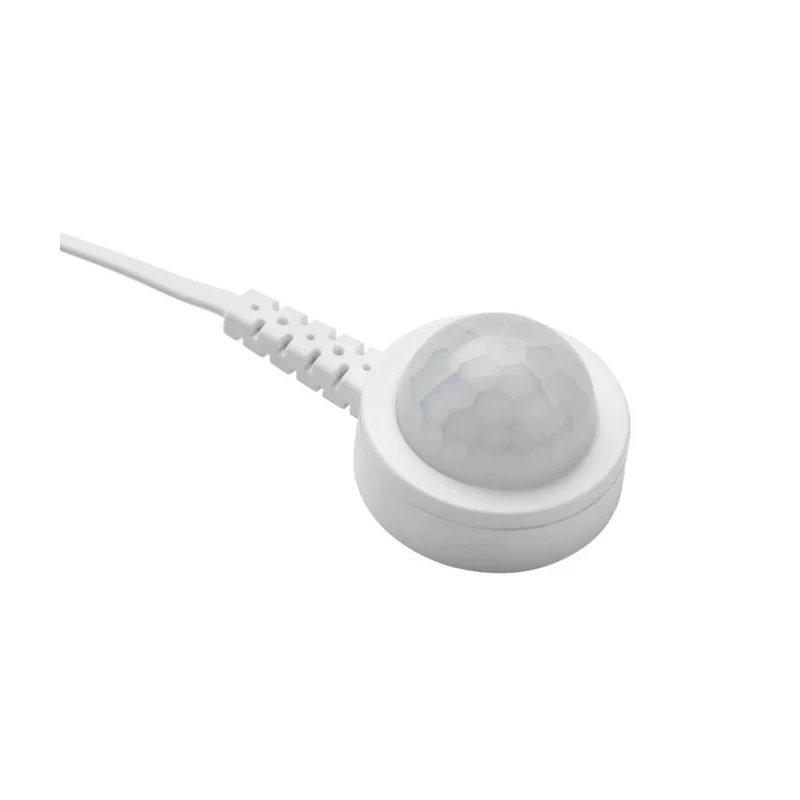

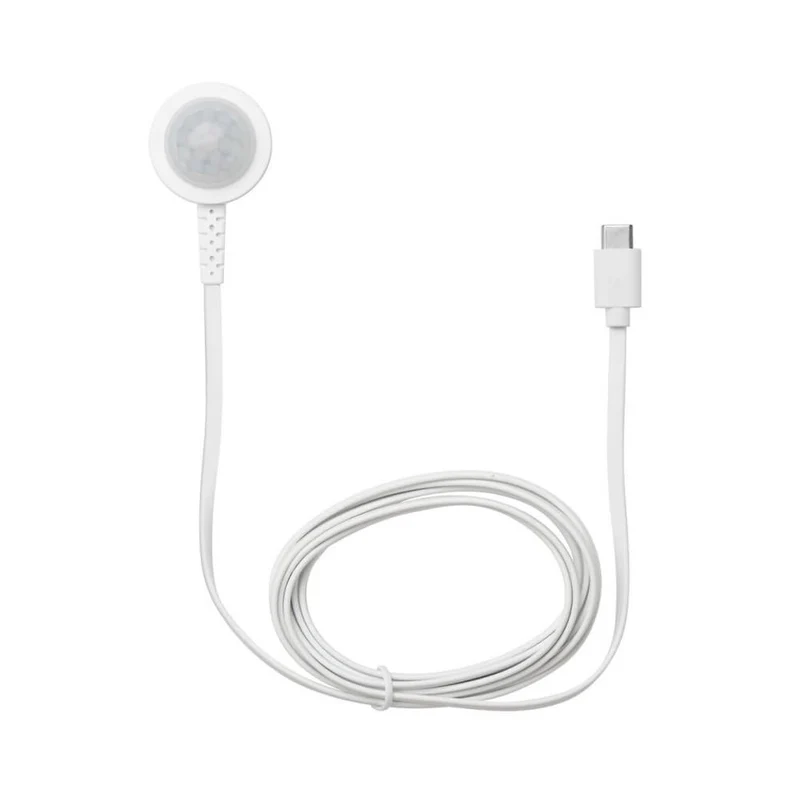

Internal Climate Monitoring Accurate to ±0.3°C for temperature and ±3% for RH, ensuring precise HVAC and storage data. External PIR Probe The 1-meter cable allows the PIR sensor to be positioned optimally for occupancy tracking independent of the base unit. 5+ Year Battery Life Powered by a built-in 2400mAh non-chargeable battery, minimizing maintenance overhead in smart buildings. Remote Configuration Supports LoRaWAN Downlink commands and wireless OTA updates for effortless lifecycle management.

Building Automation Scenarios

• Smart Offices: Trigger lighting and ventilation based on both environmental thresholds and real-time room occupancy. • Facility Management: Monitor janitorial activity and traffic patterns in commercial restrooms or utility rooms. • Storage Security: Detect unauthorized entry in sensitive inventory areas while logging ambient storage conditions.

Technical Integration

The LHT65N-PIR is fully compatible with LoRaWAN® v1.0.3 Class A and works seamlessly with all standard gateways. It supports global frequency bands (EU868, US915, AU915, etc.) and features an easy-to-read tri-color LED for status indication. For advanced system architecture or guidance on occupancy-driven automation, contact the ShopIoT engineering team.
