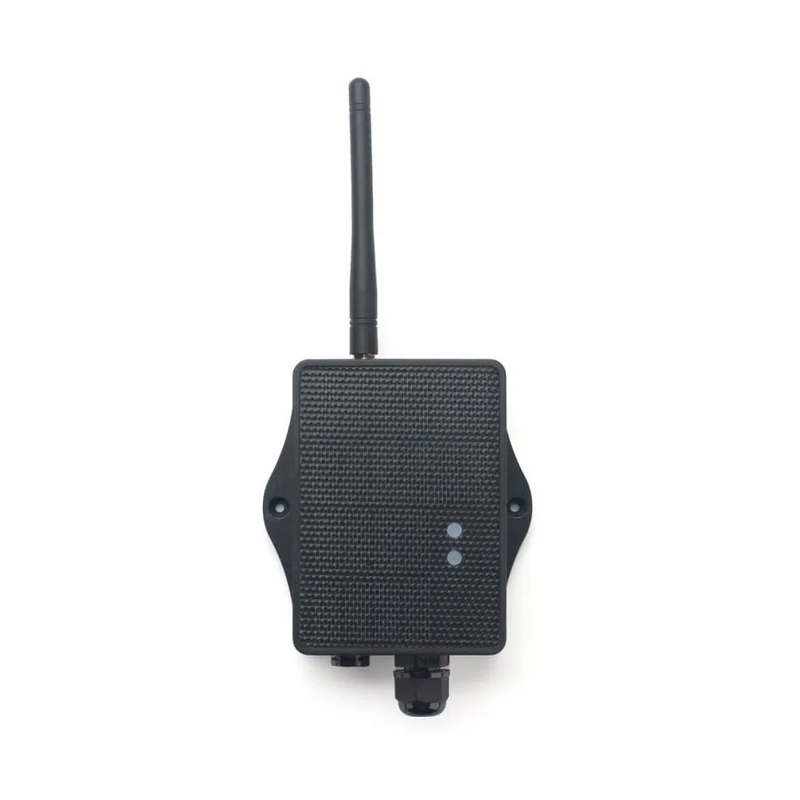

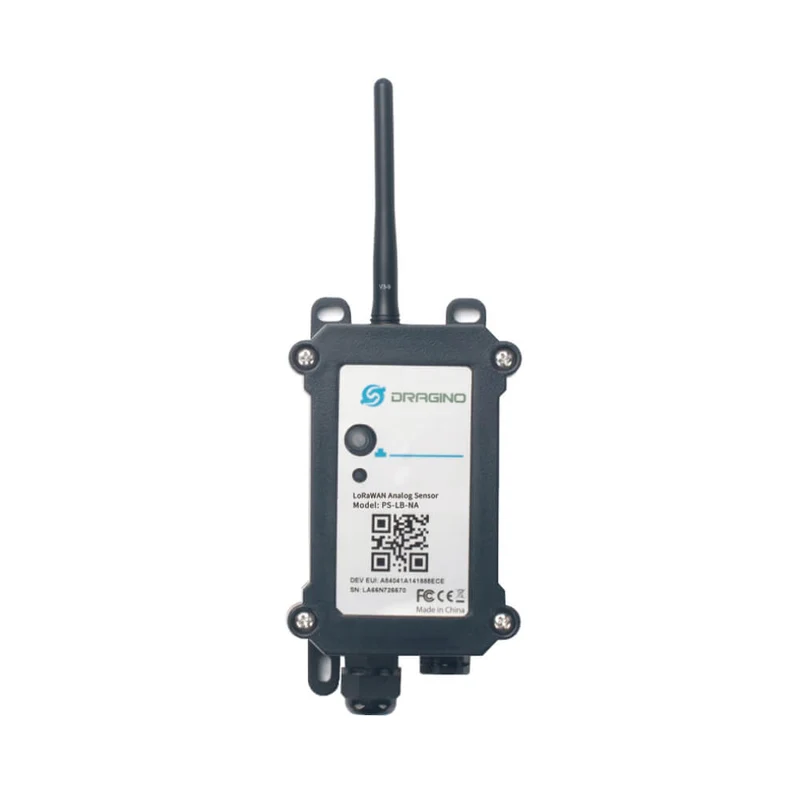

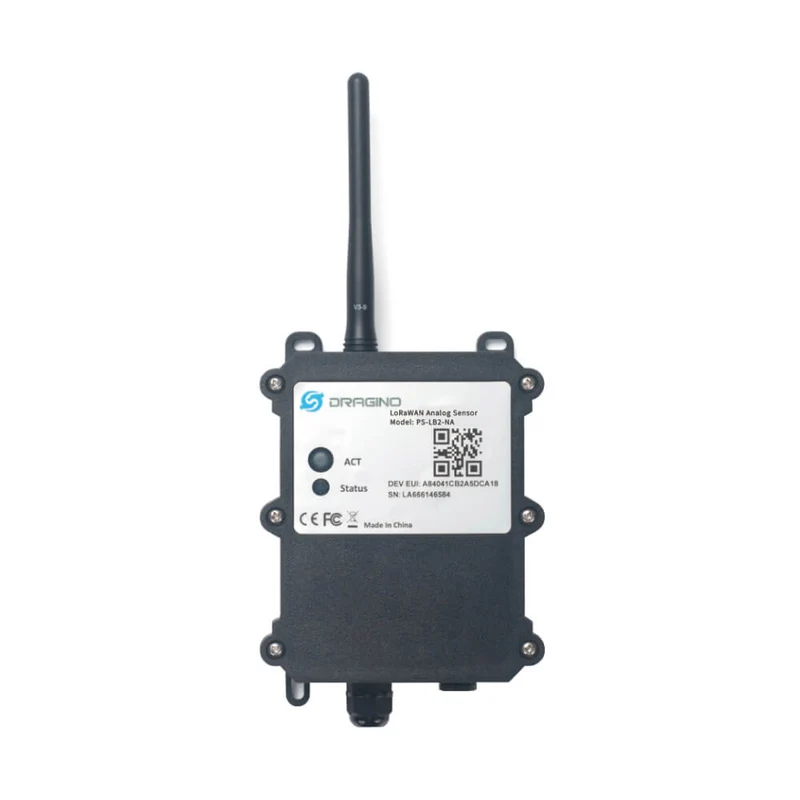

Dragino PS-NA Series | LoRaWAN Analog Sensor Node
29,41 €52,00 €43% OFF
Beschreibung
The Dragino PS-NA is a highly adaptable LoRaWAN® analog sensor node designed to bring legacy industrial sensors into the Internet of Things. It provides a comprehensive interface to power external sensors and convert their analog signals—either 4-20mA or 0-30V—into wireless data packets. With its ability to provide switchable 5V and 12V output, it eliminates the need for separate power supplies at the sensor site. This makes it an ideal solution for retrofitting pressure, level, or flow sensors in remote industrial, agricultural, and smart city environments.
Industrial Data Acquisition
Versatile Analog Bridge Equipped with a 12-bit ADC to provide high-resolution conversion for both current (4-20mA) and voltage (0-30V) based industrial probes. Sensor Power Management Features controllable 5V and 12V outputs to wake up and power external sensors only during measurement cycles, maximizing battery life.Professional Deployment Scenarios
• Smart Industry: Monitor tank levels and pipeline pressure using standard 4-20mA industrial transducers. • Remote Agriculture: Connect 0-30V soil sensors or weather instruments in fields without local power access. • Smart City: Bridge analog environmental sensors for noise, vibration, or pollution monitoring into the LoRaWAN network.Dragino Power Options
• Model LB: 8500mAh Non-rechargeable battery for multi-year remote operation. • Model LB2: High-capacity 19000mAh non-rechargeable battery for extreme longevity. • Model LS: 3000mAh Solar-powered rechargeable battery for sustainable maintenance-free use.Cable Gland Specifications
Available in three standardized connector hole sizes to accommodate various industrial cable diameters:
• M12: Compact industrial standard. • M16: Mid-range for standard multi-core cables. • M20: Large for armored or high-shielded industrial wiring.
