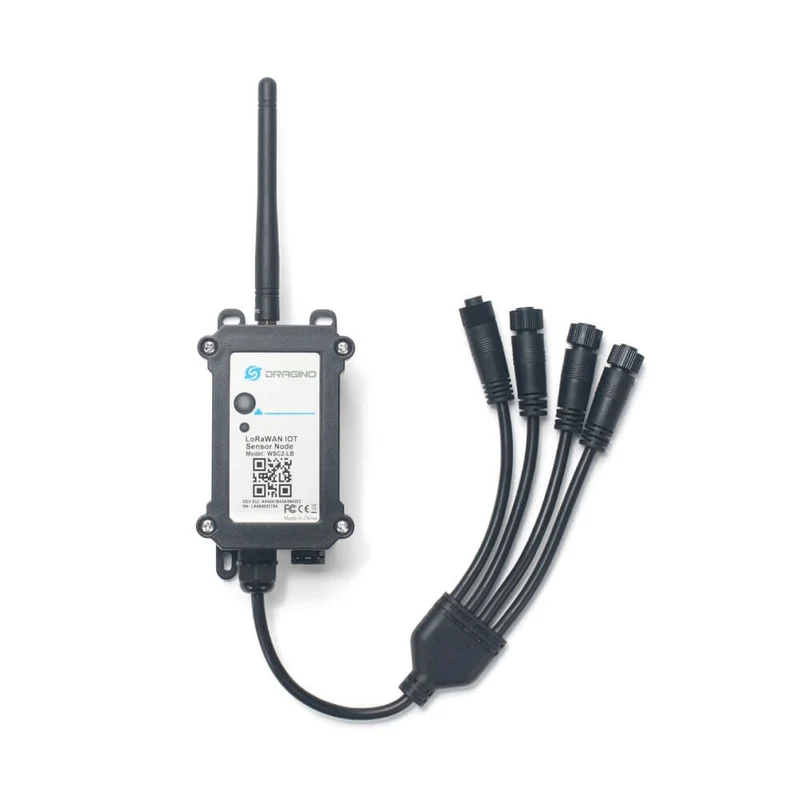

Dragino WSC2-L | Industrial LoRaWAN Weather Station Main Process Unit

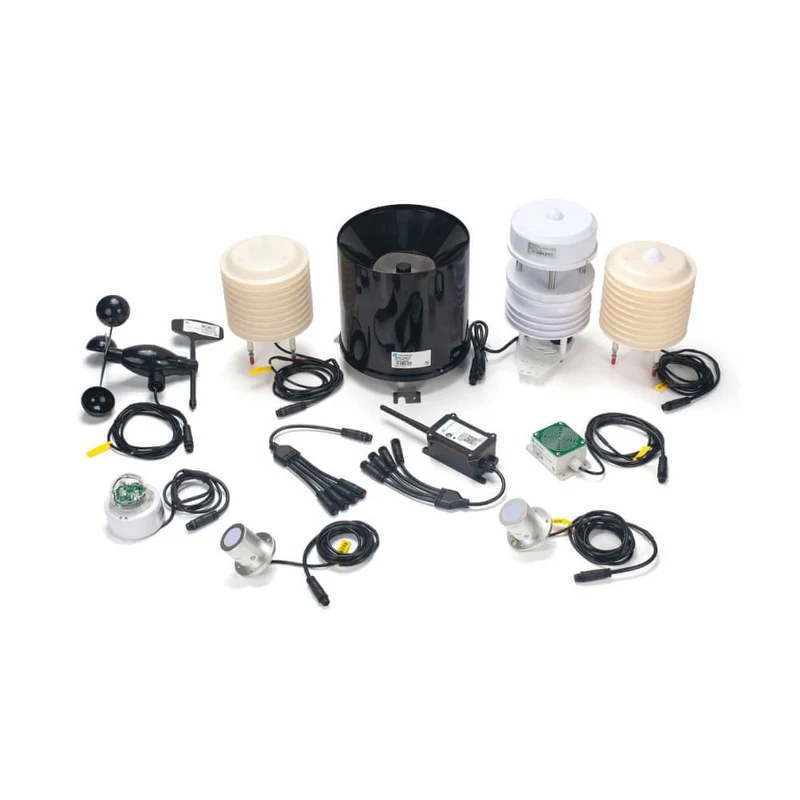

The Dragino WSC2-L is the central processing engine for comprehensive agricultural and meteorological monitoring solutions. This high-performance LoRaWAN® transmitter is engineered to interface with multiple weather sensors—including wind speed/direction, rainfall, PAR radiation, and CO2—via a noise-resistant RS485 interface. Housed in a rugged IP66 enclosure, the WSC2-L provides a scalable, long-range bridge between complex outdoor sensors and your IoT platform, ensuring reliable data delivery in the most demanding field research environments.

Core Capabilities

RS485 Modbus Hub Natively supports the WSS Series sensors and 3rd party RS485 devices for unified data uplinks. IP66 All-Weather Constructed to withstand harsh agricultural conditions with a waterproof, UV-stabilized enclosure. Backup Battery System Internal 1000mAh battery provides critical uptime and power monitoring during main supply failures. BLE Configuration Smartphone-based setup and wireless firmware updates via Bluetooth v5.1 minimize on-site labor.

Agricultural Applications

• Precision Farming: Act as the brain of a multi-sensor station to monitor soil, air, and light intensity for crop optimization. • Metrological Stations: Bridge high-precision RS485 wind speed and rainfall gauges to long-range LoRaWAN networks. • Greenhouse Research: Unified monitoring of PAR (light), CO2 levels, and atmospheric pressure for research compliance.

Technical Integration

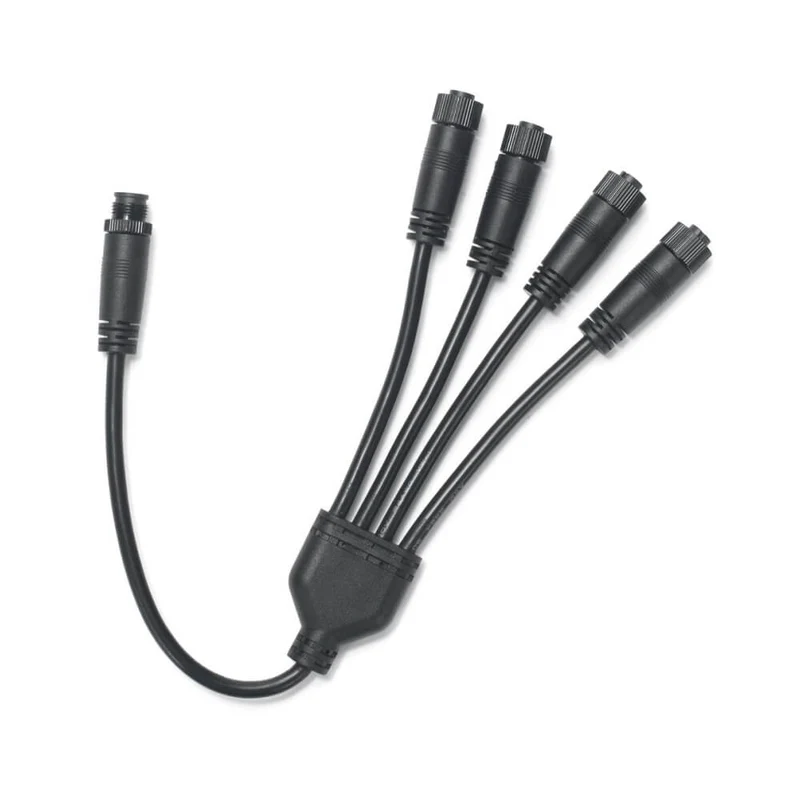

The WSC2-L is LoRaWAN v1.0.3 Class A compliant and pre-configured for global frequency bands. It features a unique LoRaWAN key for zero-touch registration on servers such as The Things Stack, ChirpStack, and AWS IoT Core. For advanced station layouts requiring more than three sensors, the 1-to-4 adapter cable (DR-F6C-4M) is available. For full system architecture support, reach out to the ShopIoT technical team.
