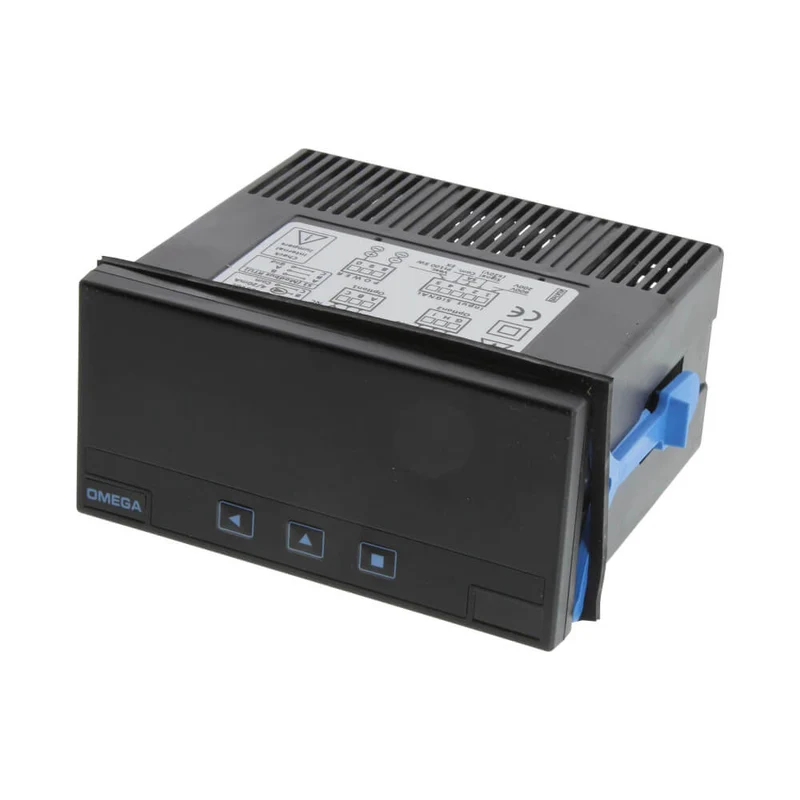

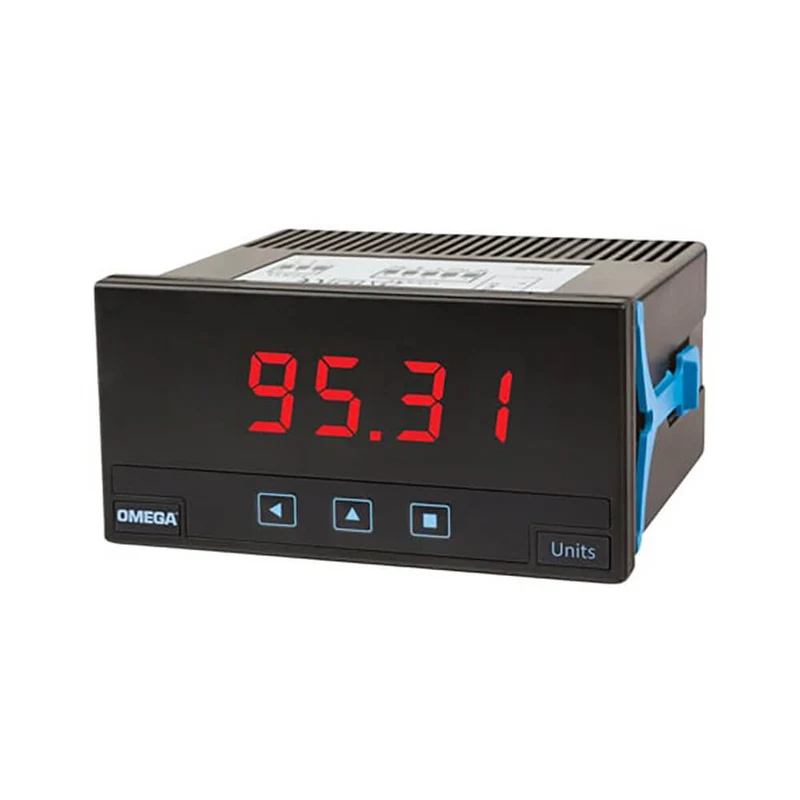

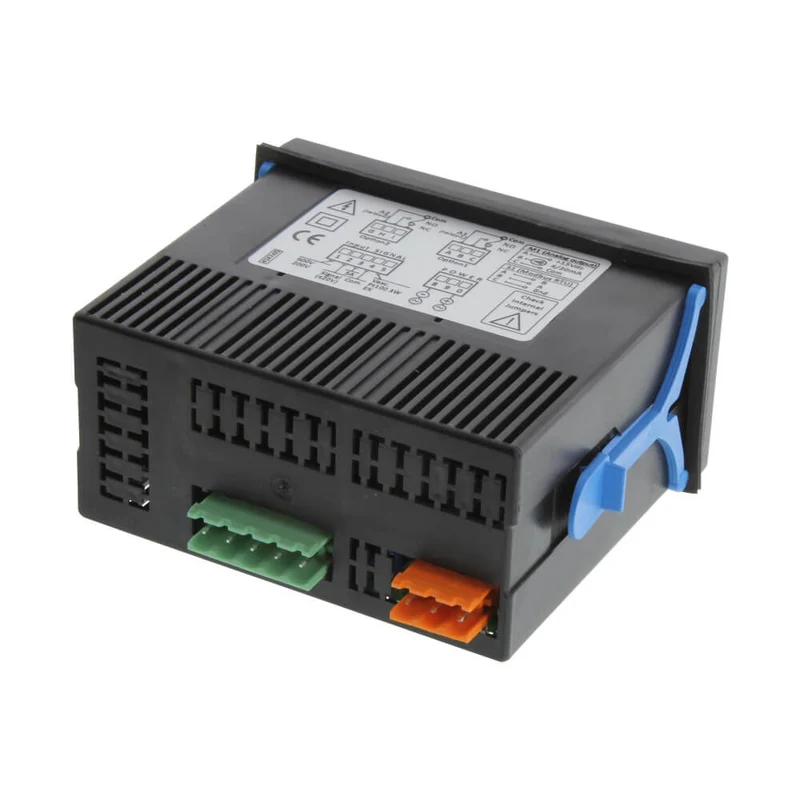

DwyerOmega DP20-A1 | Multisignal Industrial Panel Meter

The Omega DP20-A1 is a high-reliability Multisignal Industrial Panel Meter engineered for versatile data visualization and control. This professional-grade instrument accepts a wide variety of input signals, ranging from standard process loops (4-20 mA, 0-10 V) to thermal sensors (RTDs and Thermocouples) and electrical parameters (Vdc, Adc). Featuring a bright 4-digit LED display and a standard 1/8 DIN footprint, the DP20-A1 provides a cost-effective solution for real-time monitoring. Its internal logic allows for easy scaling and configuration via front-panel keys, making it an essential component for control cabinets and machinery across Europe and the Middle East.

Technical Intelligence & Control

Integrated Alarm Relay Equipped with a built-in 8A SPDT relay, allowing for immediate automated control or alarm triggering when measured values exceed pre-set thresholds. Field Versatility Features a universal power supply (18-265 Vac/dc) and selectable jumpers for range adjustment, ensuring compatibility with virtually any industrial environment.

Professional Usage Scenarios

• Process Monitoring: Scalable display for pressure, flow, and level sensors using 4-20mA or 0-10V signals. • Thermal Control: High-precision temperature readout for industrial ovens and cooling systems using Pt100 or Thermocouples. • Electrical Maintenance: Monitor DC voltage or current in battery banks and power distribution panels.

Product Certifications

CE RoHS IP65 (Frontal)

What's in the box

• 1 x Omega DP20-A1 Panel Meter • 1 x Panel Mounting Gasket & Clips • 1 x Quick Installation Guide
