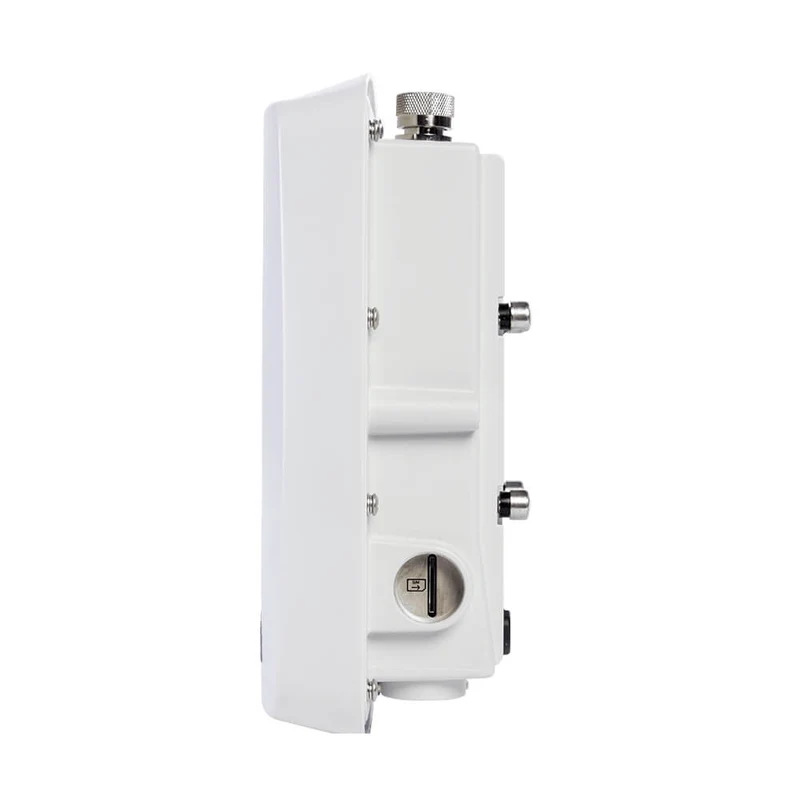

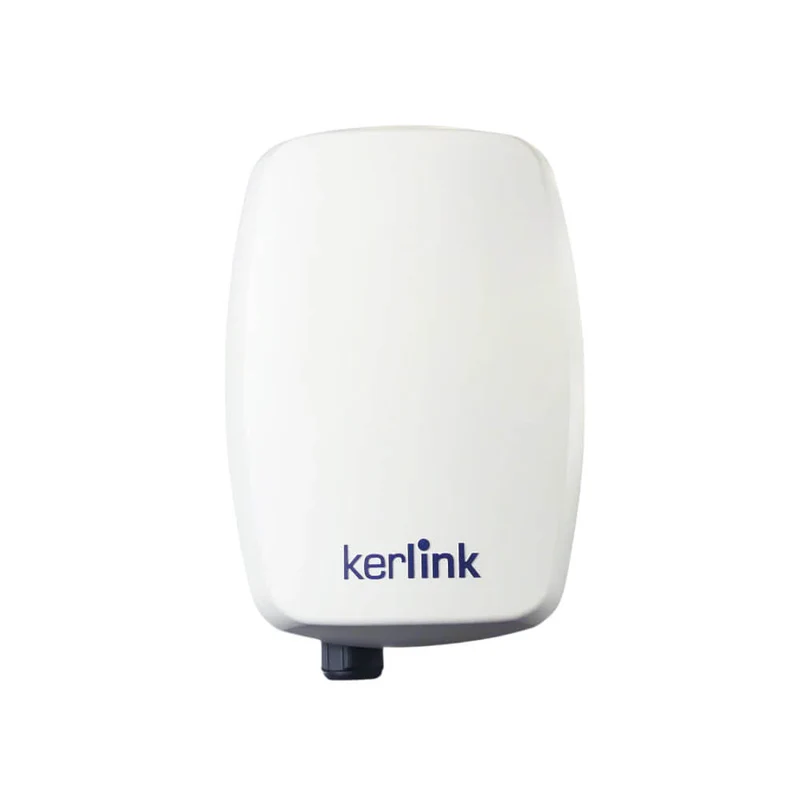

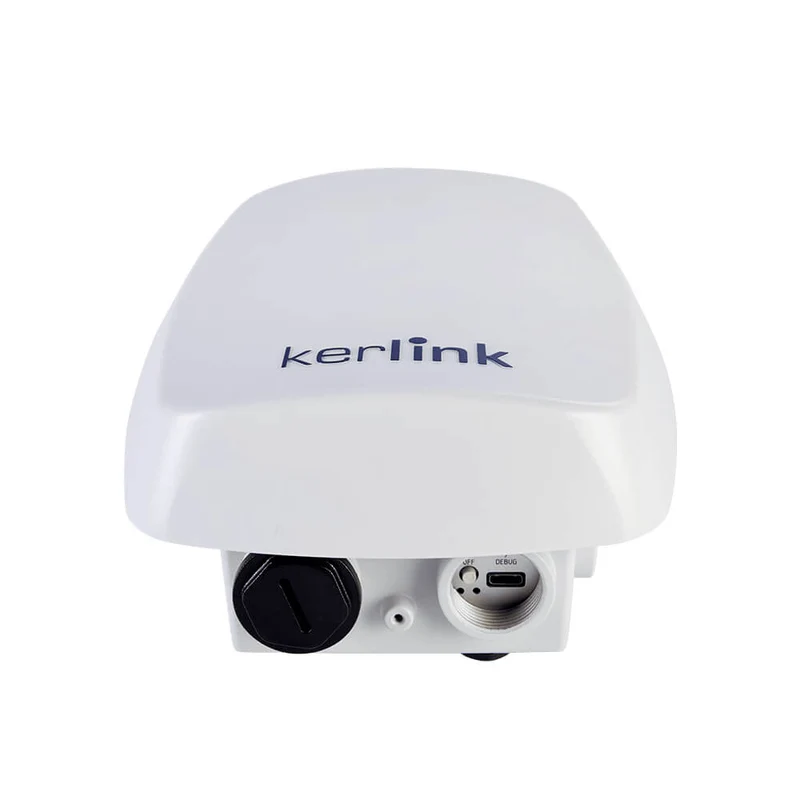

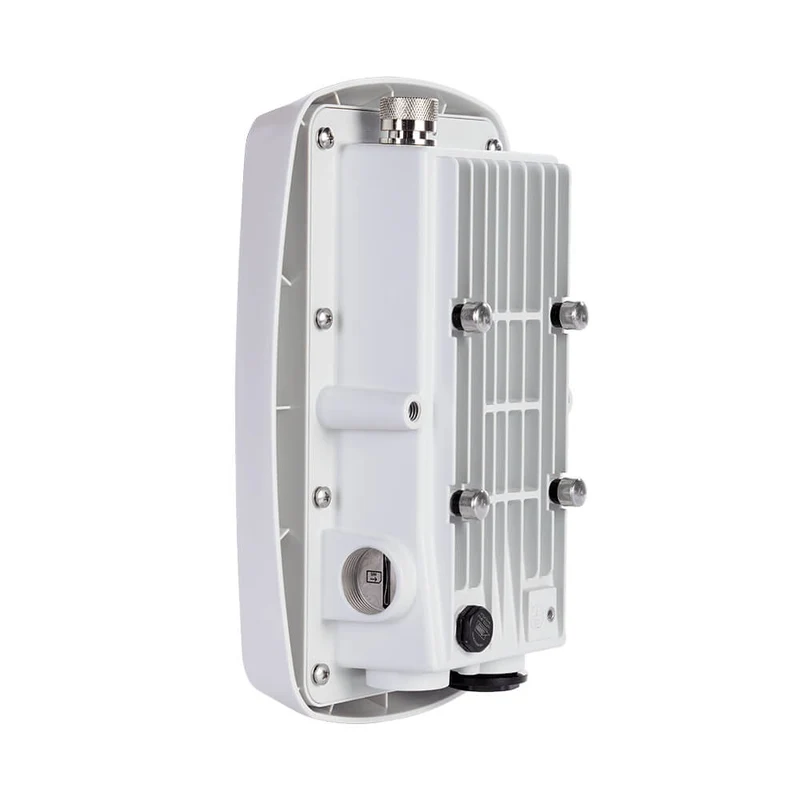

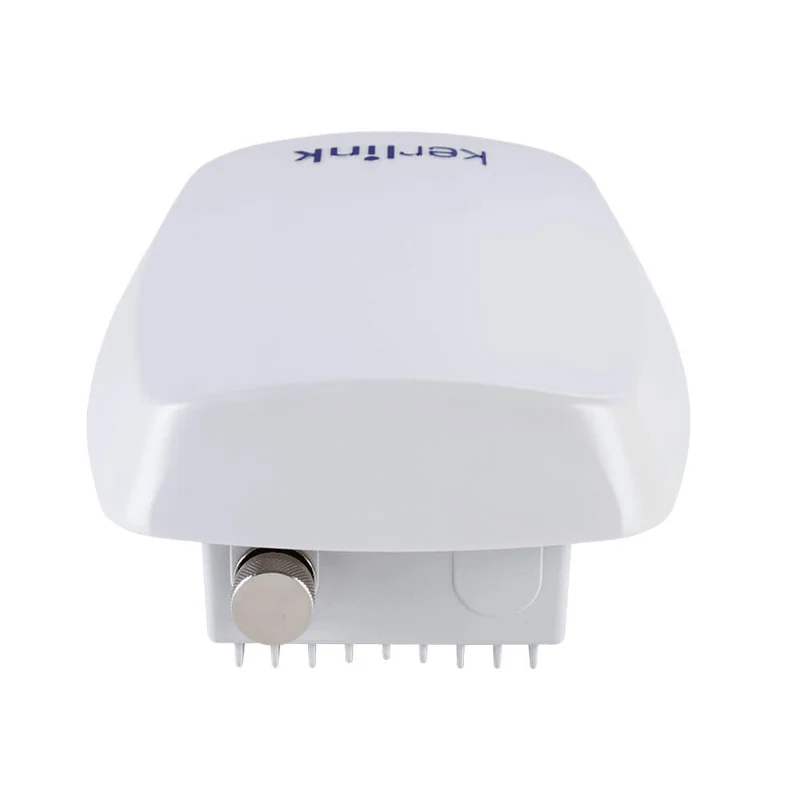

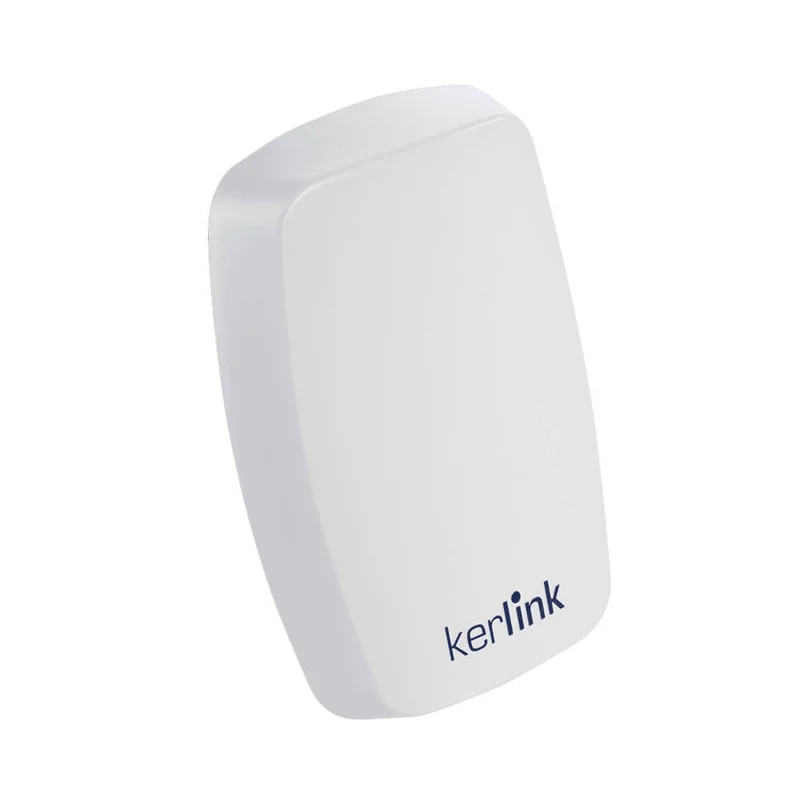

Kerlink Wirnet iStation | Carrier-Grade Outdoor LoRaWAN Gateway

The Kerlink Wirnet iStation is a carrier-grade outdoor LoRaWAN® gateway engineered for the most demanding IoT deployments. Designed by one of the pioneers of LoRaWAN infrastructure, it combines a ruggedized IP67 casing, superior long-range coverage, and operational excellence — making it the go-to choice for public operators, MVNOs, private businesses, and smart-city projects that need to connect high volumes of devices reliably.

It brings together the best of the Wirnet Station with the optimisations of Kerlink's i-series (iBTS, iFemtoCell), sharing the same software for easier, lower-cost integration. With fully integrated antennas, dual 4G + Ethernet backhaul, and a hardware secure core, the iStation is built to be deployed quickly and operated easily — even by non-telecom teams — through the Kerlink Wanesy™ Management Center.

Core Capabilities

Superior LoRa Radio Built on Semtech Reference Design v1.5, with 8-channel RX (125 kHz, multi-SF) plus 250/500 kHz, FSK, and TX channels — 10 RX + 1 TX total. Rx sensitivity down to −141 dBm (SF12), Tx configurable 5–27 dBm, with built-in high-rejection SAW filters and LBT. Dual 4G + Ethernet Backhaul A worldwide 4G module with 3G/2G fallback plus 10/100 Ethernet (RJ45) keeps the gateway connected almost anywhere. GPS, 4G, and LoRa antennas are fully integrated — no external antenna install required. Carrier-Grade & Outdoor-Ready IP67 casing (aluminium back, polycarbonate front, stainless mounting kit) with excellent heat dissipation, rated −40 °C to +60 °C. Install without opening the casing thanks to waterproof RJ45/SIM connectors and the included mounting kit. Hardware-Grade Security A hardware secure core with SecureBoot (signed firmware), SecureStorage via ProvenCore™, and OpenVPN/IPsec backhaul protection. A watchdog auto-recovers to the last good configuration after a boot issue.

Typical Applications

• Smart Cities & Public Operators: Deploy scalable, reliable public or private LoRaWAN networks managing millions of bidirectional messages a day. • Smart Metering & Energy: Carrier-grade coverage for utility, water, and energy metering at city and regional scale. • Smart Agriculture & Environment: Long-range outdoor coverage for farms, fields, and remote environmental monitoring sites. • Smart Industry: Robust connectivity for industrial sites, logistics hubs, and asset-tracking networks in harsh outdoor conditions.

Technical Integration

The iStation integrates into carrier-grade outdoor LoRaWAN networks:

• Network server: On-gateway LoRa Network Server via the optional Wanesy™ SPN2; managed through the Wanesy™ Management Center/Plane, Web GUI, or SSH. • Power: 802.3af PoE (Mode A & B) or ±48 VDC over RJ45 (isolated); capacitor for clean shutdown on power loss. • Programmable: KerOS (GNU/Linux) with a toolchain for Python, C/C++, and Shell; shared software across the Wirnet™ iBTS and iFemtoCell families. • Interfaces: USB-C debug port and a multifunction On/Off/Reset button; spectrum-analyser compliant. • Band: EU868 model (SKU PDTIOT-ISS04) — also covers IN865-867 and RU864-870. • Setup help: Talk to the shopioT technical team for PoE/antenna accessories or network-server setup.

What's in the Box

1×Wirnet iStation Outdoor Gateway (EU868) 1×Stainless-Steel Mounting Kit

Note: a PoE injector is required to power the gateway and is sold separately, as are optional external antennas, cavity filters, and surge protection. Contact us for the right accessories for your deployment.

Frequently Asked Questions

How is the iStation powered?

Over its RJ45 link — either by 802.3af PoE (Mode A & B, via an injector or switch) or ±48 VDC isolated power. A compatible PoE injector is required and sold separately.

Does it need external antennas?

No. GPS, 4G, and LoRa antennas are fully integrated (LoRa peak gain 2.6 dBi), so no external antenna install is required. External 3 dBi or 6 dBi LoRa antennas are available as an option for extra range.

Which backhaul options does it support?

A worldwide 4G cellular module with 3G/2G fallback (mini-SIM) and 10/100 Ethernet (RJ45) — use either or both for resilient connectivity.

Can it run its own network server?

Yes — with the optional Wanesy™ SPN2 (Small Private Network), the gateway can embed a LoRa Network Server on-device for standalone private networks.

Which frequency band is this model?

This is the EU868 model (SKU PDTIOT-ISS04), covering the EU863-870, IN865-867, and RU864-870 LoRaWAN regional parameters.

Certifications

CE (Europe) ISO 9001:2015 Manufacturer
