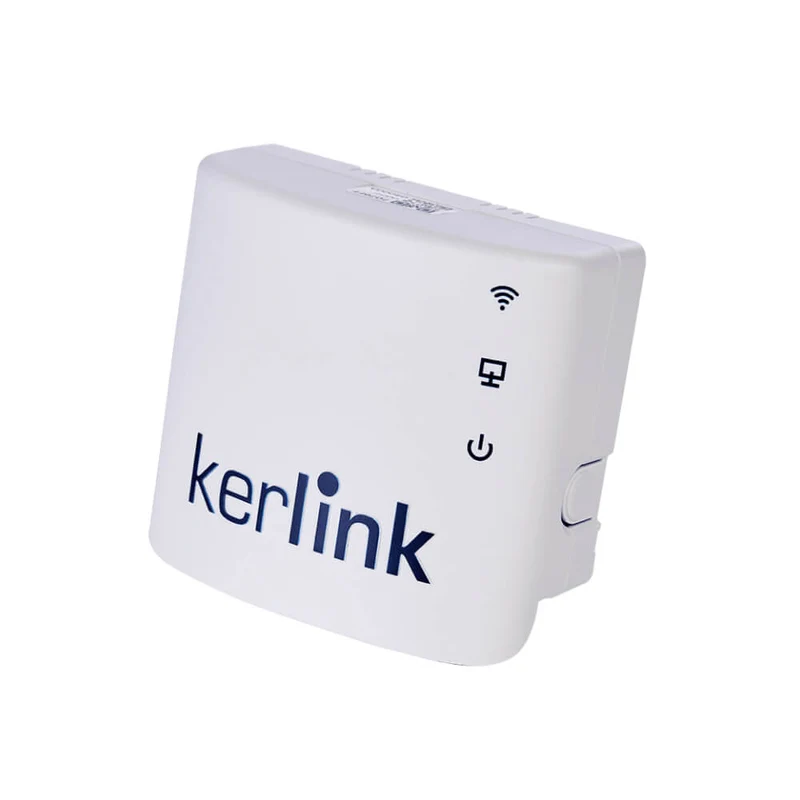

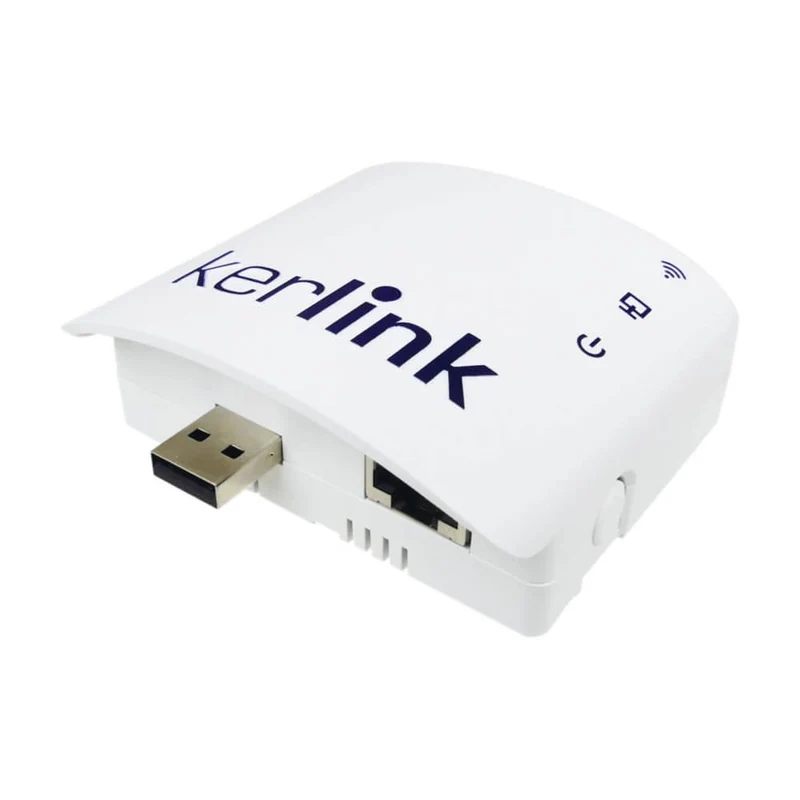

Kerlink Wirnet iZeptoCell Ethernet | Plug-and-Play Indoor LoRaWAN Gateway (SX1302)

The Kerlink Wirnet iZeptoCell Ethernet is a compact, high-performance indoor LoRaWAN® gateway built on the Semtech SX1302 CoreCell reference design. With an integrated LoRa antenna, built-in high-rejection filters, and very low power consumption, it delivers reliable in-building coverage and network densification for massive IoT — all from a unit that fits in the palm of your hand.

It's designed to be strictly plug-and-play: zero-touch provisioning removes the need for on-site technical expertise, while Ethernet backhaul and flexible USB power options make installation quick in almost any environment. A hardware secure core, signed firmware, and encrypted backhaul keep your private network protected end to end.

Core Capabilities

SX1302 CoreCell Performance 8×8 packet detectors with 8-channel RX (125 kHz, multi-SF) plus dedicated 250/500 kHz, FSK, and TX channels. Rx sensitivity down to −140 dBm (SF12BW125), Tx configurable 5–27 dBm, and up to 28 dBm EIRP. Strictly Plug-and-Play Zero-touch provisioning gets the gateway online with no specialist skills required. Manage it remotely through the Kerlink Wanesy™ Management Center, an intuitive Web GUI, or SSH. Hardware-Grade Security SecureBoot with signed firmware, SecureStorage for keys and certificates via the ProvenCore™ secure core, and OpenVPN/IPsec-protected backhaul. A watchdog auto-recovers to the last good config. Flexible Ethernet & USB Power Ethernet 10/100BASE-TX backhaul (RJ45, up to 150 m on Cat5e) and USB-A power — from the included AC/DC supply or USB cables, or an optional PoE/USB splitter for single-cable installs.

Typical Applications

• Smart Buildings & Facilities: Add dedicated indoor LoRaWAN coverage and densify networks deep inside offices, campuses, and multi-floor sites. • Smart Metering & Energy: Reliably back-haul utility, sub-metering, and energy sensors with low-latency, low-bandwidth LoRaWAN. • Smart Cities & Public Operators: Extend public or private network coverage into buildings and hard-to-reach indoor pockets. • Smart Retail & Industry: A discreet, easy-to-mount gateway for stores, warehouses, and industrial floors needing dependable indoor connectivity.

Technical Integration

The iZeptoCell Ethernet slots into private indoor LoRaWAN networks with minimal setup:

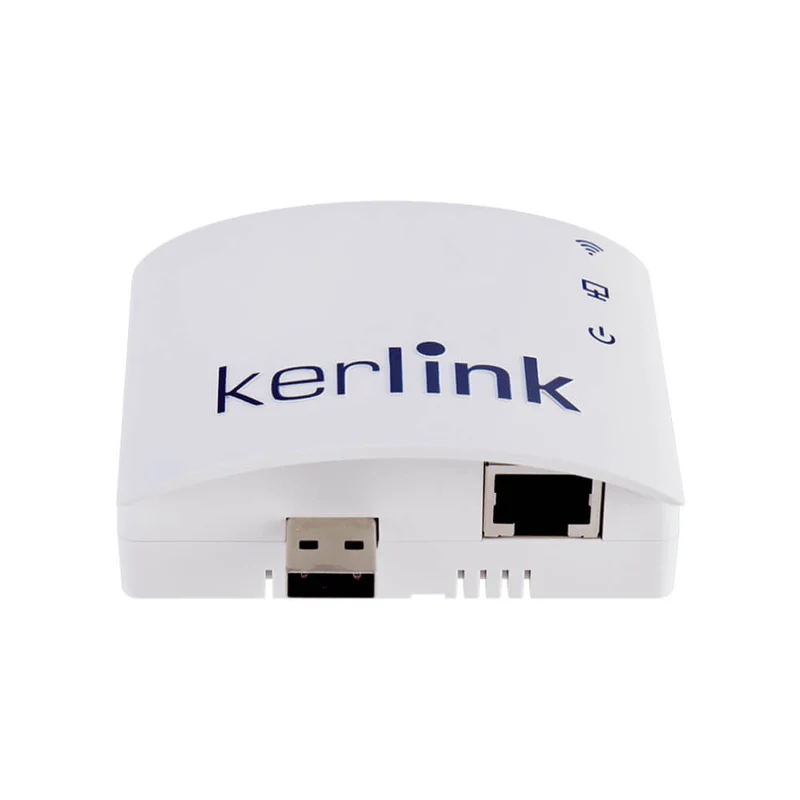

• Provisioning: Zero-touch provisioning; managed via the Kerlink Wanesy™ Management Center, Web GUI, or SSH. • Backhaul & power: Ethernet 10/100BASE-TX (RJ45, up to 150 m on Cat5e); USB-A power from the included AC/DC supply or cables; optional PoE/USB splitter. • Programmable: Runs KerOS (GNU/Linux) with a toolchain for Python, C/C++, and Shell; shares software with the Wirnet™ iBTS, iStation, and iFemtoCell families. • Security: SecureBoot (signed firmware), SecureStorage via ProvenCore™, OpenVPN/IPsec backhaul, and watchdog recovery. • Band: EU868 model (SKU PDTIOT-IZEE800) — also covers IN865-867 and RU864-870. • Setup help: Talk to the shopioT technical team for provisioning, Wanesy integration, or network-server setup.

What's in the Box

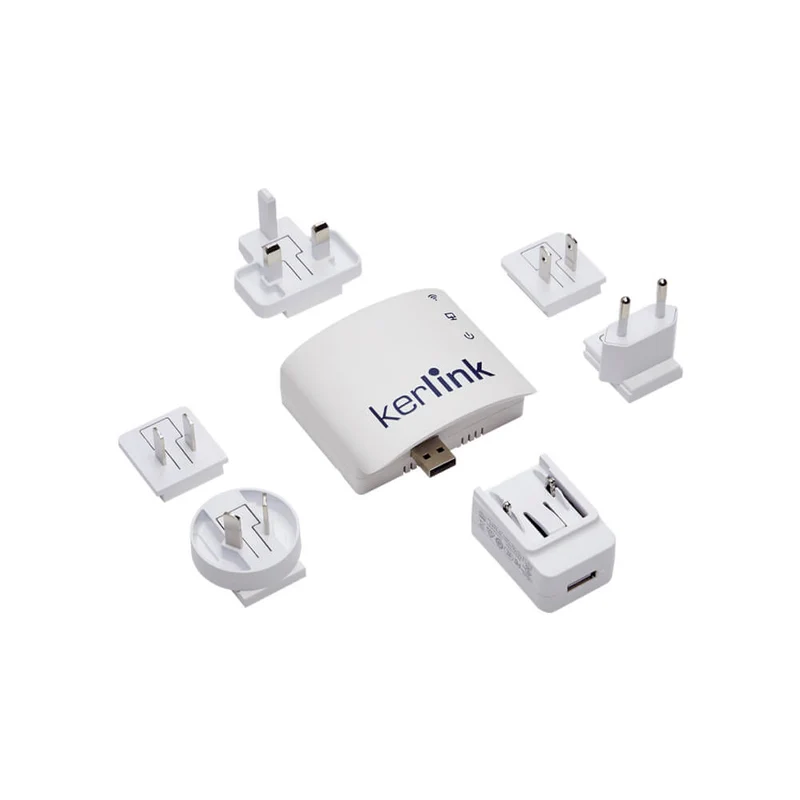

1×Wirnet iZeptoCell Ethernet Gateway 1×AC/DC Power Supply (90–264 VAC / 5 VDC) 1×USB-A Extension Cable 1×USB-A to USB-C Cable

Note: a PoE/USB power splitter is available as an optional accessory (not included).

Frequently Asked Questions

How is the iZeptoCell powered?

Through a USB-A connector. The box includes an AC/DC power supply (90–264 VAC / 5 VDC), a USB-A extension cable, and a USB-A to USB-C cable. An optional PoE/USB splitter lets you power it over the Ethernet cable.

Does it need technical expertise to set up?

No. It's strictly plug-and-play with zero-touch provisioning — connect power and Ethernet and it comes online, then manage it remotely via the Wanesy™ Management Center or the Web GUI.

Which frequency band does this model use?

This is the EU868 Ethernet model (SKU PDTIOT-IZEE800), covering the EU863-870, IN865-867, and RU864-870 LoRaWAN regional parameters.

Is it secure for private networks?

Yes. It uses a hardware secure core with SecureBoot (signed firmware), SecureStorage via ProvenCore™, and OpenVPN/IPsec-protected backhaul, plus watchdog recovery to a known-good configuration.

Can I run custom software on it?

Yes. It's a programmable gateway running KerOS (GNU/Linux), with a toolchain and support for Python, C/C++, and Shell for homemade applications or extra packages.

Certifications

CE (Europe) ISO 9001:2015 Manufacturer
