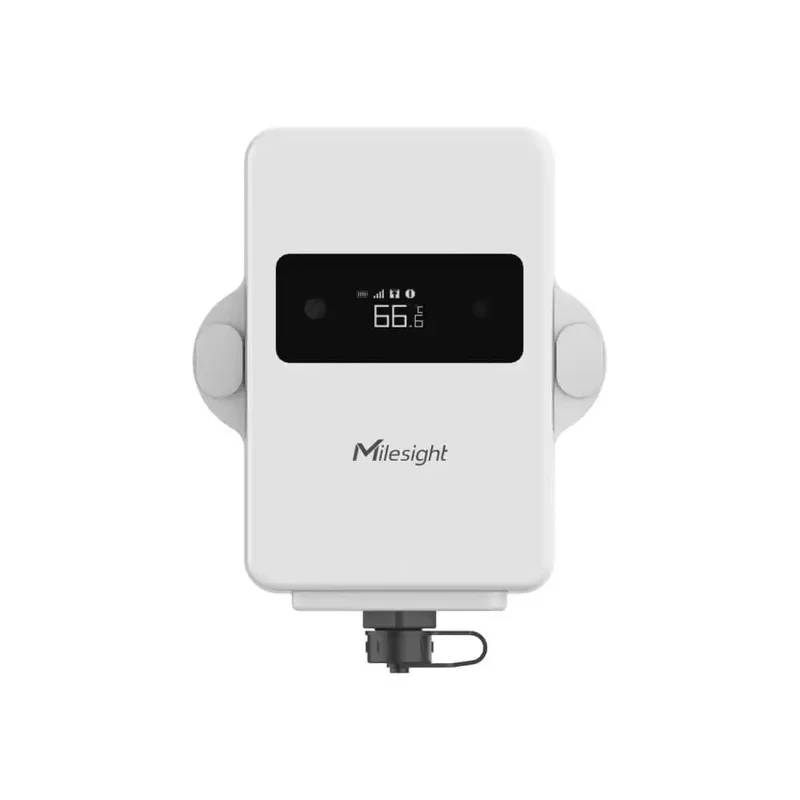

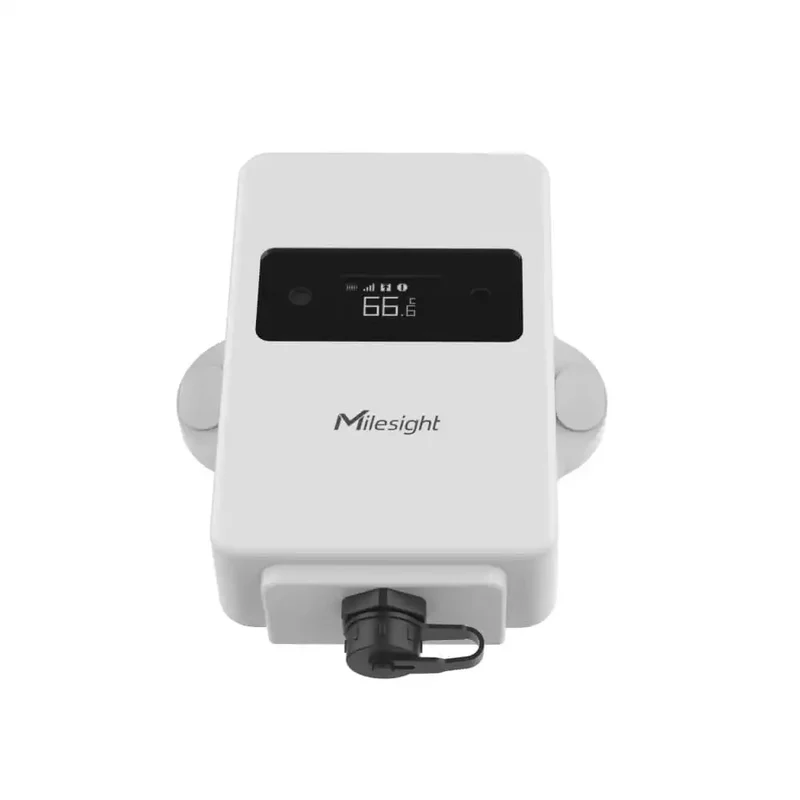

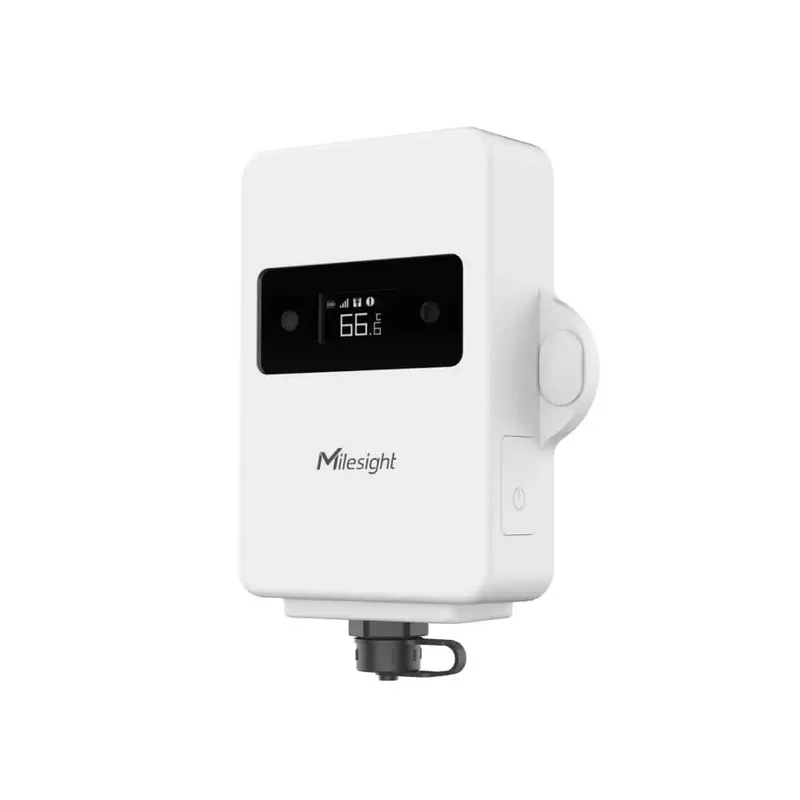

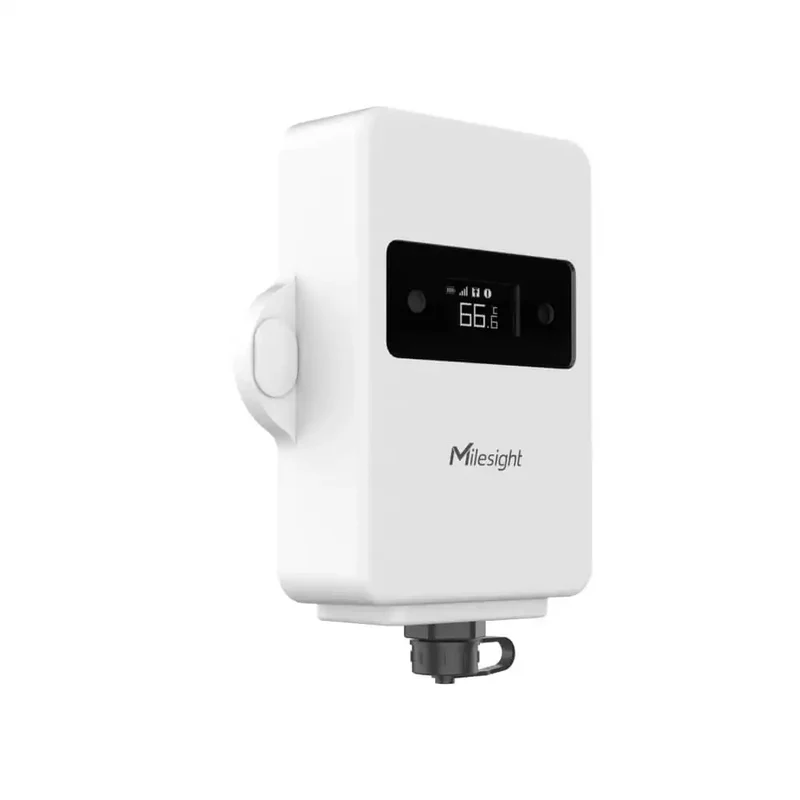

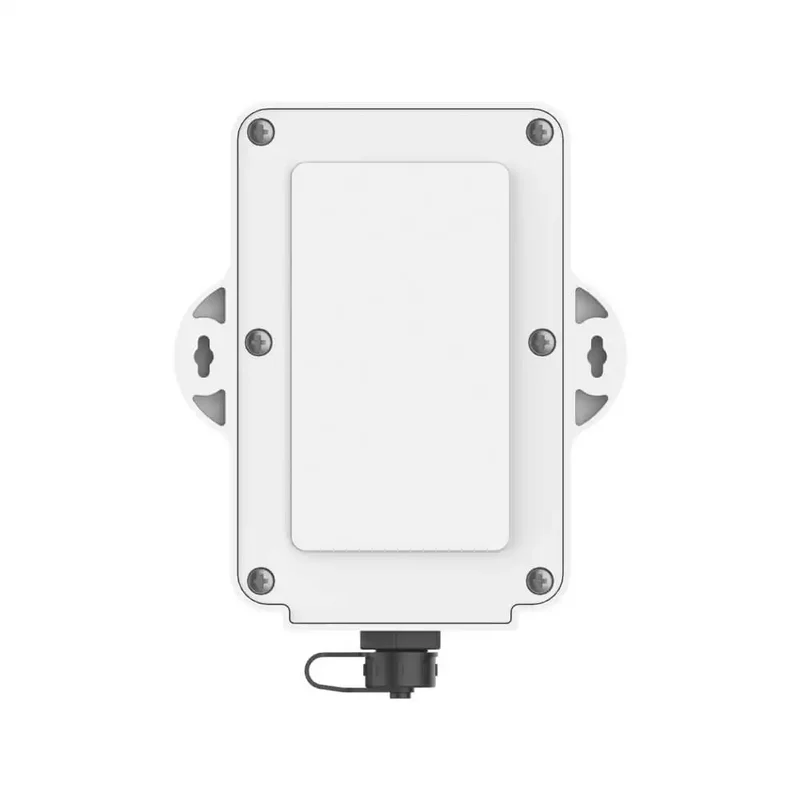

Milesight TS602 | IP67 Cellular Temperature & Humidity Sensor with OLED Display

The Milesight TS602 is a compact, IP67-rated cellular temperature and humidity sensor engineered for precise environmental monitoring across cold chain logistics, food storage, pharmaceutical transport, and industrial applications. Powered by LTE Cat.1 connectivity and featuring a 0.96-inch OLED display for real-time on-device data readout, the TS602 supports a versatile range of optional external probes — including PT100, DS18B20, and TH sensors — enabling deployment across demanding temperature ranges from -200°C to +500°C. Built with a food-grade ABS+PC enclosure, it allows direct contact with food and pharmaceutical products without contamination risk, while NFC-based configuration via the Milesight ToolBox app keeps field deployment fast and toolless.

Core Capabilities

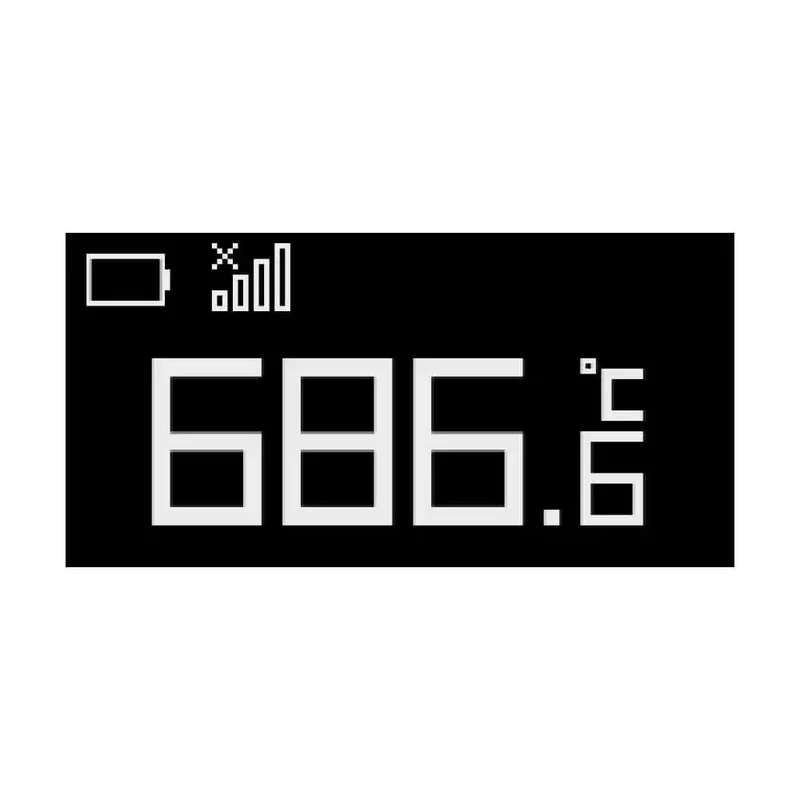

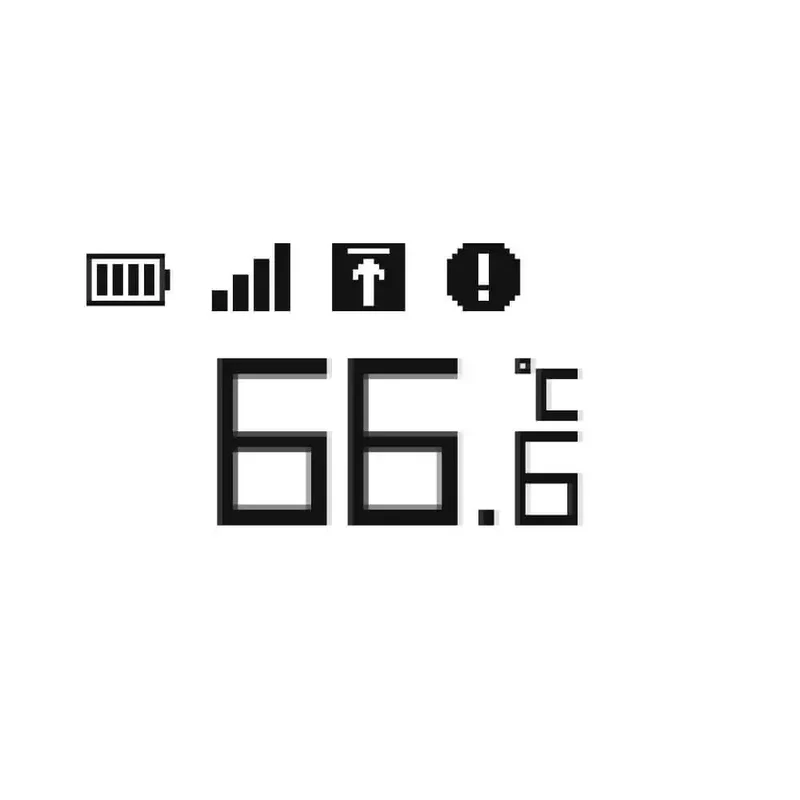

OLED Display & Probe Flexibility0.96-inch OLED for live T&H readout. Supports PT100, DS18B20, and TH external probes via 5-pin M12 connector. Multi-Platform LTE ConnectivityLTE Cat.1 backhaul with support for TCP, UDP, MQTT, AWS IoT Core, and Milesight Development Platform. Advanced Alarm IntelligenceConfigurable temperature/humidity threshold alarms, shift alarms, light alarm for case opening detection, tilt, and drop alarms. Data Integrity & ResilienceLocal storage of up to 5,000 entries with automatic data retransmission after network recovery to prevent data loss.

Industrial Applications

•Cold Chain Logistics: Monitor temperature and humidity in real time during road and air transport of pharmaceuticals, vaccines, perishables, and food products, with full data traceability. •Pharmaceutical & Food Storage: Ensure regulatory compliance for temperature-controlled storage environments using food-grade certified enclosure materials. •Industrial Process Monitoring: Deploy with PT100 probes for high-accuracy measurement in industrial applications ranging from cryogenic conditions to high-temperature processes up to +500°C. •Asset & Shipment Tracking: Leverage built-in base station positioning, 3-axis accelerometer, and light sensor for cargo monitoring, tamper detection, and door opening alerts.

Technical Integration

The TS602 is configured wirelessly via NFC using the Milesight ToolBox mobile application, requiring no tools or physical connections in the field. It supports OTA firmware upgrades and remote management through both the Milesight Development Platform and AWS IoT Core. Flight mode compliance ensures safe operation on air freight shipments. The optional Glass Bead Thermal Buffer Bottle kit improves measurement stability in freezers and refrigerators. For probe selection, deployment planning, or integration guidance, contact the ShopIoT technical team.

Certifications

CE RoHS

Certification details confirmed on official Milesight product page (www.milesight.com).

What's in the Box

1 × TS602 Device 1 × Temperature (Humidity) Probe 2 × Wall Screw Mounting Kits 2 × Screw Caps 1 × Cable Tie (3.6×500mm) 1 × 3M Tape 1 × Quick Guide 1 × Warranty Card Glass Bead Thermal Buffer Bottle Kit (Optional)
