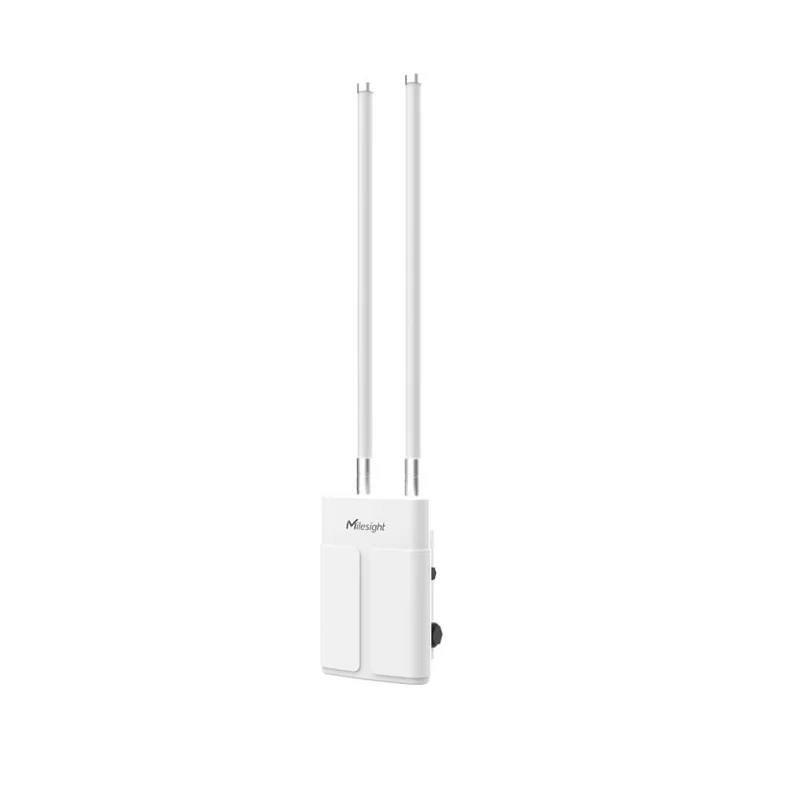

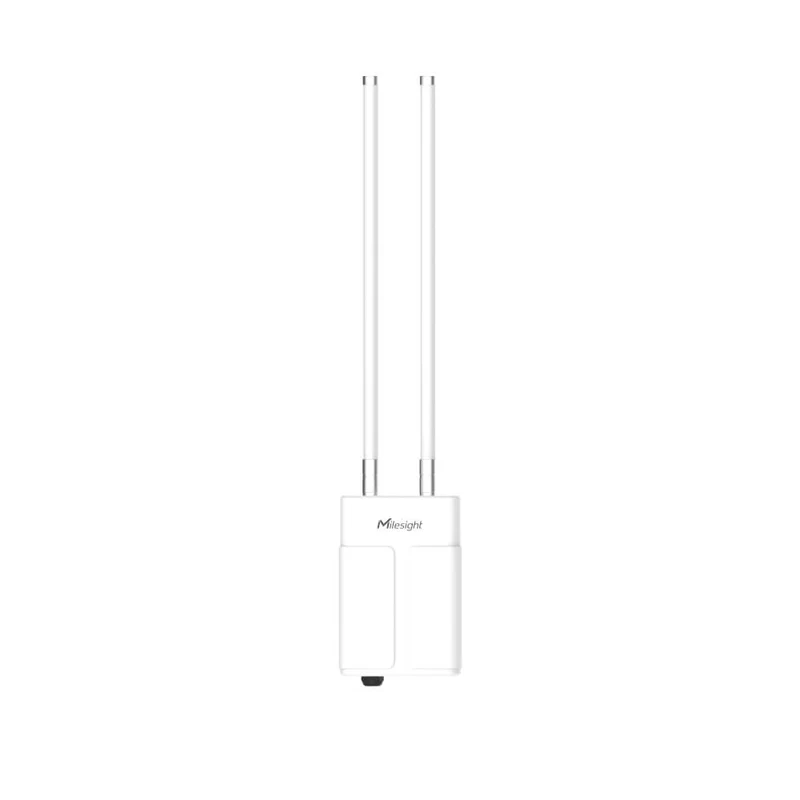

Milesight UG67 | 8-Channel Industrial Outdoor LoRaWAN Gateway | IP67, 4G & GNSS

The Milesight UG67 is a robust 8-channel outdoor LoRaWAN gateway built for large-scale outdoor IoT. Powered by the Semtech SX1302 chip and a quad-core 64-bit CPU, it handles 2,000+ end nodes with line-of-sight reach up to 15 km, inside a rugged IP67 aluminium enclosure rated for −40 °C to +70 °C.

Designed for the field, the UG67 adds built-in GNSS positioning, multi-backhaul redundancy across Ethernet (PoE), Wi-Fi, and 4G LTE, and a power-failure alarm capacitor. Its embedded network server and BACnet/Modbus support make it equally at home in smart agriculture, smart metering, smart city, and outdoor industrial deployments.

Core Capabilities

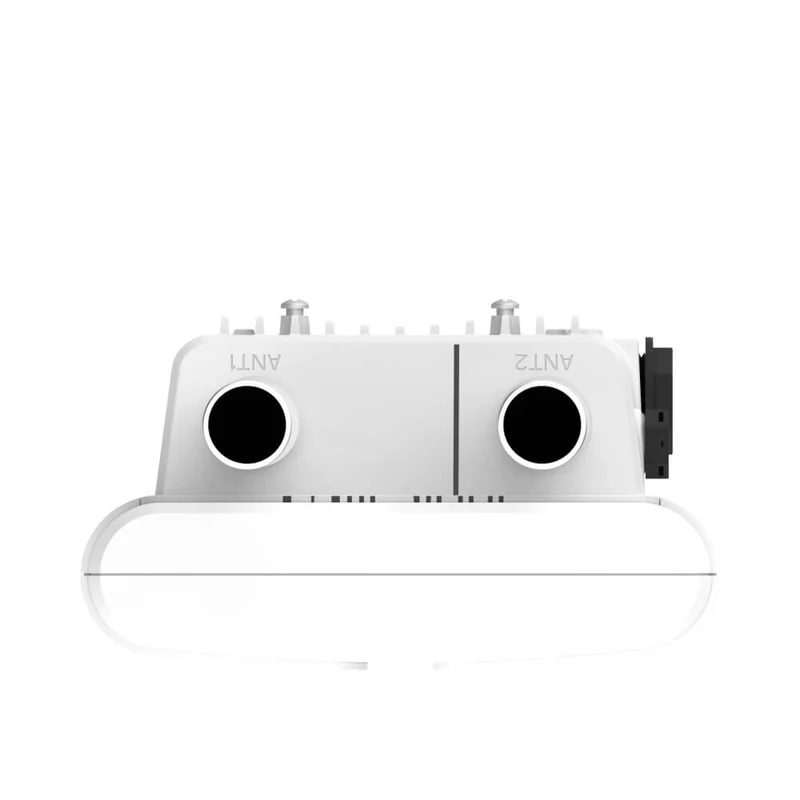

High Capacity & 15 km Range 8 half/full-duplex channels on the SX1302 chip, −140 dBm sensitivity, and 27 dBm Tx power support around 2,000 Class A/B/C nodes with line-of-sight reach up to 15 km. LBT and a built-in Noise Analyser keep channels clean. Rugged IP67 Outdoor Design PC + ADC-12 aluminium enclosure rated IP67 for harsh, all-weather environments, operating −40 °C to +70 °C. Wall or pole mounting, dual 60 cm external LoRa antennas, and a capacitor that sends an alarm on power failure. Triple Backhaul + Built-In GNSS Gigabit Ethernet (PoE PD), 2.4 GHz Wi-Fi, and 4G LTE with WAN failover keep the gateway online anywhere. Integrated GNSS (GPS/GLONASS/QZSS/SBAS, 2.5 m CEP) provides location and accurate time sync for field deployments. Embedded Server, Edge Dev & Security Built-in network server with Gateway Fleet, Multicast, and FUOTA; Python SDK and Node-RED for edge logic. Enterprise security via OpenVPN, IPsec, WireGuard, L2TP, PPTP, GRE, and DMVPN, plus a full firewall.

Typical Applications

• Smart Agriculture: Provide wide-area LoRaWAN coverage across fields, greenhouses, and farms for soil, climate, and irrigation sensors — with GNSS for precise gateway/asset location. • Smart Metering & Utilities: Aggregate water, gas, and energy meter data across districts, backhauling over 4G where wired connectivity isn't available. • Smart City & Infrastructure: Mount on poles and façades for street lighting, parking, waste, and environmental sensing across urban areas, integrating into BACnet/Modbus platforms. • Outdoor Industrial & Remote Sites: Deliver resilient connectivity at logistics yards, ports, solar farms, and remote facilities, with power-failure alerting and multi-backhaul redundancy.

Technical Integration & BMS

Key points for fitting the UG67 into your outdoor network and building systems:

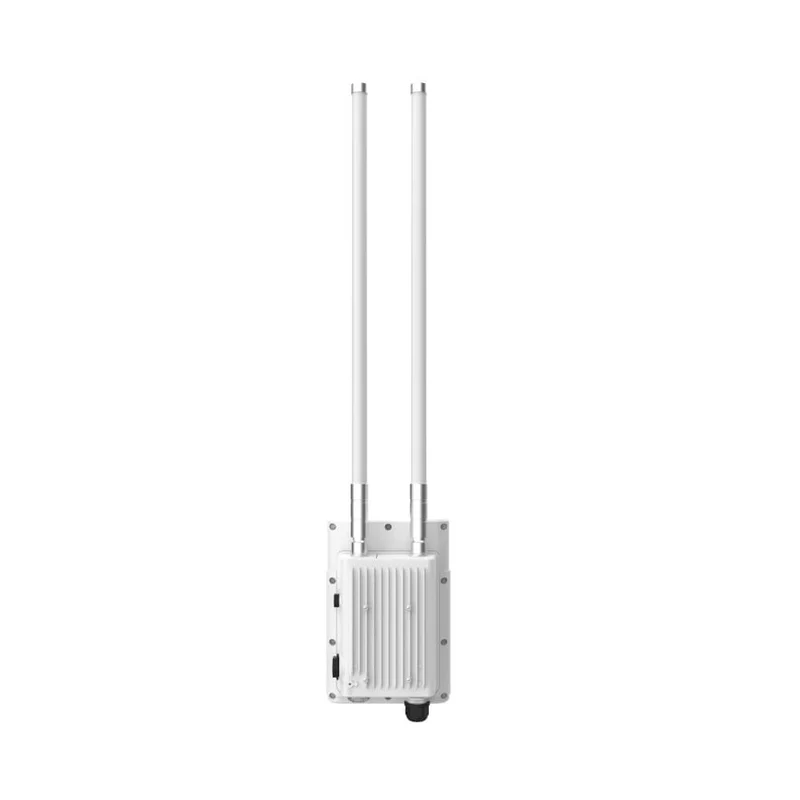

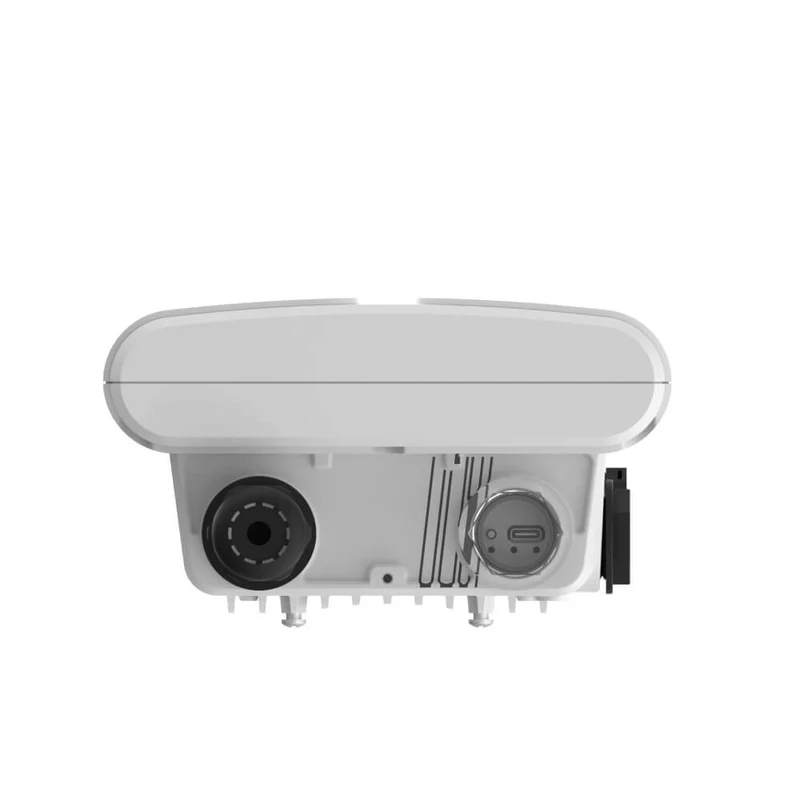

• Backhaul & positioning: Gigabit Ethernet (PoE), 2.4 GHz Wi-Fi, and 4G LTE (Mini SIM, 2FF) with WAN failover, plus built-in GNSS (GPS/GLONASS/QZSS/SBAS, 2.5 m CEP) for location and time sync. • Network server & protocols: Built-in LoRaWAN network server feeding BACnet/IP, BACnet/SC, Modbus TCP and Modbus RTU over TCP, MQTT(s), and HTTP(s) APIs; also compatible with The Things Stack, ChirpStack, Actility, and AWS. • Management: Configured via Web GUI, CLI (SSH/Telnet), SNMP, HTTP API, and MQTT API; managed remotely through the Milesight DeviceHub or Development Platform. • Power: 802.3af PoE (PoE injector included) or 6–12 V DC via an M12 connector, at a typical 3.6 W (4.8 W max); a capacitor sends an alarm on power failure. • Mounting & environment: Rugged IP67 PC + aluminium enclosure (240 × 164 × 90.9 mm, 1463 g) for wall or pole mounting; operates −40 °C to +70 °C. • Setup help: For outdoor network design or BMS integration support, contact the shopioT technical team.

What's in the Box

1×UG67 Outdoor Gateway 2×LoRaWAN® Antennas (60 cm) 1×PoE Injector 1×M12 DC Power Cable (30 cm) 1×Antenna Coaxial Cable (1 m) 1×Mounting Bracket 4×Wall Mounting Kits 1×Short Mounting Backboard Kit

Note: the 4G model requires a Mini SIM (2FF), not included.

Frequently Asked Questions

Is the UG67 suitable for outdoor installation?

Yes. It has an IP67-rated PC + aluminium enclosure rated −40 °C to +70 °C, with wall or pole mounting and dual 60 cm external antennas — purpose-built for harsh outdoor environments.

How many devices and what range does it support?

Around 2,000 Class A/B/C nodes, with line-of-sight coverage up to 15 km from a single gateway.

What backhaul options does it have?

Gigabit Ethernet (PoE), 2.4 GHz Wi-Fi, and 4G LTE (Mini SIM, 2FF), with automatic WAN failover for resilient connectivity.

Does it include GNSS?

Yes — built-in GNSS (GPS/GLONASS/QZSS/SBAS, 2.5 m CEP) provides gateway/asset location and accurate time synchronisation.

How is it powered?

By 802.3af PoE (a PoE injector is included) or 6–12 V DC via an M12 connector, drawing a typical 3.6 W (4.8 W max). A capacitor sends an alarm if power is lost.

Can it integrate with a BMS or external network server?

Yes — it supports BACnet/IP, BACnet/SC, Modbus TCP, and Modbus RTU over TCP, has a built-in network server, and is compatible with The Things Stack, ChirpStack, Actility, and AWS.

Certifications

CE CE (RED) FCC RoHS
